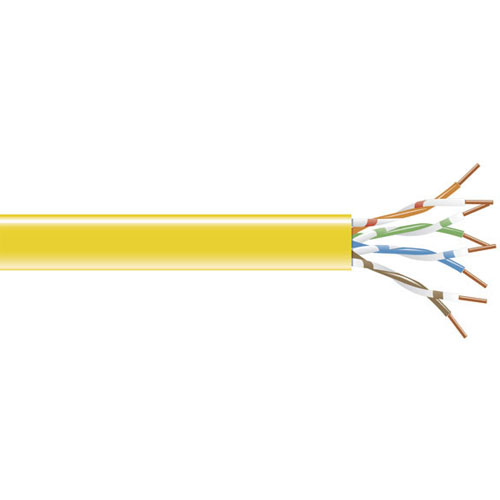

GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, 1000-ft. (304.8-m), Yellow

Quick Facts

Further Details

Supports applications such as 10BASE-T, 100BASE-TX, 155-Mbps ATM as well as applications such as 622-Mbps ATM and Gigabit Ethernet. Certified for use in the WideBand networking system.
Meets or exceeds minimum standards for CAT5e.
Tested to 200 Mhz.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Attenuation (Maximum)	22 dB/100 m typical at 100 MHz
Cable Type	4-pair UTP
Capacitance (Nominal)	15 pF/ft. at 1 kHz Conductors - 24 AWG, solid copper Delay Skew (Maximum) - 45 ns/100 m
Impedance	100 ± 15 ohms at 100 MHz; 100 ± 25 ohms at 200 MHz
NEXT (Minimum)	35.3 dB at 100 MHz PS-ACR - 11 dB at 100 MHz
PS-ELFEXT (Minimum)	20.8 dB/100 m at 100 MHz PS-NEXT (Minimum) - 32.3 dB at 100 MHz
Return loss (Minimum)	20.1 dB at 100 MHz
Velocity of Propagation (Nominal)	70%
Weight	22 lb./1000 ft. (10 kg/304.8 m)
NOTE: Cable comes on spools unLess otherwise noted.
This product works with	GigaStation High-Density Multimedia Patch Panels GigaBase CAT5e Patch Panels GigaBase CAT5e Jacks GigaBase2 CAT5e Jacks GigaStation Wallplates GigaStation2 Wallplates CAT5e Termination Kit CAT5e Modular Plugs Color-coded Flex Plugs and Pre-Plugs

Attenuation (Maximum)	22 dB/100 m typical at 100 MHz
Cable Type	4-pair UTP
Capacitance (Nominal)	15 pF/ft. at 1 kHz Conductors - 24 AWG, solid copper Delay Skew (Maximum) - 45 ns/100 m
Impedance	100 ± 15 ohms at 100 MHz; 100 ± 25 ohms at 200 MHz
NEXT (Minimum)	35.3 dB at 100 MHz PS-ACR - 11 dB at 100 MHz
PS-ELFEXT (Minimum)	20.8 dB/100 m at 100 MHz PS-NEXT (Minimum) - 32.3 dB at 100 MHz
Return loss (Minimum)	20.1 dB at 100 MHz
Velocity of Propagation (Nominal)	70%
Weight	22 lb./1000 ft. (10 kg/304.8 m)
NOTE: Cable comes on spools unLess otherwise noted.
This product works with	GigaStation High-Density Multimedia Patch Panels GigaBase CAT5e Patch Panels GigaBase CAT5e Jacks GigaBase2 CAT5e Jacks GigaStation Wallplates GigaStation2 Wallplates CAT5e Termination Kit CAT5e Modular Plugs Color-coded Flex Plugs and Pre-Plugs

Note: Please read description carefully. Do not base your order on the picture presented.
