BlackBox EXN0625A-0500 Multimode, General-Purpose, Bulk FO Cable

  • Brand BlackBox
  • Part # EXN0625A-0500
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

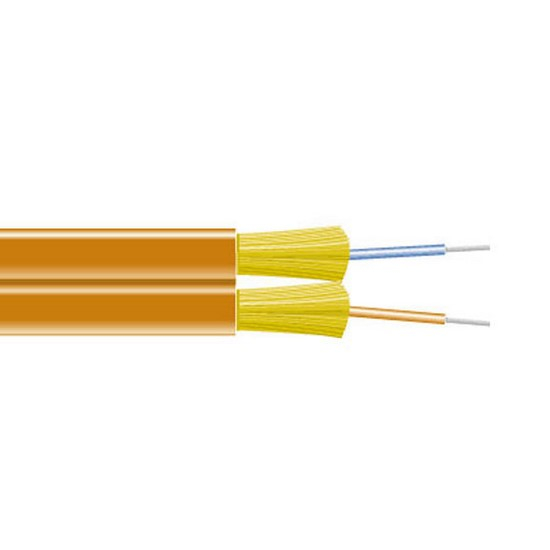

Multimode, General-Purpose, Bulk Fiber Optic Cables, PVC, Zipcord Duplex, 500-ft.

Quick Facts

  • Use the PVC cable for horizontal and backbone network runs.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
Attenuation (Maximum) 62.5-Micron: 850 nm: 3.5 dB/km; 1300 nm: 1 dB/km;
50-Micron: 850 nm: 3.5 dB/km; 1300 nm: 1.5 dB/km
Bandwidth (Minimum) 62.5-Micron: 850 nm: 200 MHz/km; 1300 nm: 500 MHz/km;
50-Micron: 850 nm: 500 MHz/km; 1300 nm: 500 MHz/km
Bend Radius (Installing/Operating) 5 cm (2")/2.5 cm (1")
Cable Size 2.87 x 6.1 mm (0.113" x 0.241")
Fiber Type 62.5- or 50-µm core, 125-µm cladding
Pulling Strength EXN0625A, EXP062A, EXP0625A, EXN050A, EXP050A: 1000 N/225 lb.
Ratings PVC: Riser-rated OFNR, UL® 1666, CSA FT4;
Plenum: OFNP, NFPA 262 (UL® 910), CSA FT6
Standards IEEE 802.3: 1000BASE-SX/LX, 100BASE-F, 10BASE-F;
IEEE 802.5: 16 Mbps;
ATM: 1.2/2.4 Gbps, 622 Mbps, 155 Mbps;
Fibre Channel: 1.062 Gbps;
FDDI: 100 Mbps;
ICEA 83-596;
TIA/EIA-568-B
Tension (Installed) EXN0625A, EXP062A, EXP0625A, EXN050A, EXP050A: 500 N/112 lb.
Product Details
Attenuation (Maximum) 62.5-Micron: 850 nm: 3.5 dB/km; 1300 nm: 1 dB/km;
50-Micron: 850 nm: 3.5 dB/km; 1300 nm: 1.5 dB/km
Bandwidth (Minimum) 62.5-Micron: 850 nm: 200 MHz/km; 1300 nm: 500 MHz/km;
50-Micron: 850 nm: 500 MHz/km; 1300 nm: 500 MHz/km
Bend Radius (Installing/Operating) 5 cm (2")/2.5 cm (1")
Cable Size 2.87 x 6.1 mm (0.113" x 0.241")
Fiber Type 62.5- or 50-µm core, 125-µm cladding
Pulling Strength EXN0625A, EXP062A, EXP0625A, EXN050A, EXP050A: 1000 N/225 lb.
Ratings PVC: Riser-rated OFNR, UL® 1666, CSA FT4;
Plenum: OFNP, NFPA 262 (UL® 910), CSA FT6
Standards IEEE 802.3: 1000BASE-SX/LX, 100BASE-F, 10BASE-F;
IEEE 802.5: 16 Mbps;
ATM: 1.2/2.4 Gbps, 622 Mbps, 155 Mbps;
Fibre Channel: 1.062 Gbps;
FDDI: 100 Mbps;
ICEA 83-596;
TIA/EIA-568-B
Tension (Installed) EXN0625A, EXP062A, EXP0625A, EXN050A, EXP050A: 500 N/112 lb.
Note

Note: Please read description carefully. Do not base your order on the picture presented.
