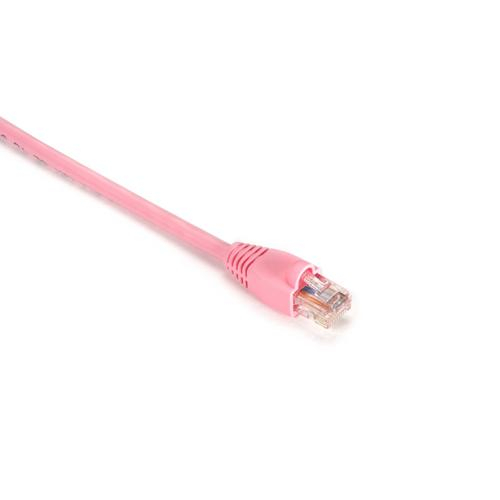

BlackBox, EVNSL86-0001, GigaBase CAT5e 350-MHz Stranded Ethernet Patch Cable - Unshielded, PVC, Snagless, RJ-45, Pink, 1-ft.

Features:

Tested to 350 MHz.
Meet or exceed CAT5e T568B standards.
Specially designed for use with other GigaBase components.
Improved near-end crosstalk (NEXT) compared to standard CAT5 cable.
Superior construction offers significant headroom.
Stranded conductors for short runs.
Tuned-plug design maintains a tighter twist and reduces noise.
Enhanced performance parameters and electrical characteristics.
Gold-plated contacts are designed for an insertion/extraction life of 1000 cycles.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Attenuation (Maximum)	24.2 dB/100 m (328.1 ft.) at 100 MHz; 49.3 dB/100 m (328.1 ft.) at 350 MHz
Cable Type	4-pair UTP
Conductor Gauge	24 AWG, stranded
Frequency	Up to 350 MHz
Impedance	100 +/- 15 ohms
NEXT (Minimum)	40.3 dB/100 m (328.1 ft.) at 100 MHz; 32.2 dB/100 m (328.1 ft.) at 350 MHz
PS-NEXT	38.3 dB/100 m (328.1 ft.) at 100 MHz; 30.2 dB/100 m (328.1 ft.) at 350 MHz
Return Loss	20.1 dB/100 m (328.1 ft.) at 100 MHz; 16.3 dB/100 m (328.1 ft.) at 350 MHz
Standards	TIA/EIA-568-B.2 Category 5e

Product Details

Attenuation (Maximum)	24.2 dB/100 m (328.1 ft.) at 100 MHz; 49.3 dB/100 m (328.1 ft.) at 350 MHz
Cable Type	4-pair UTP
Conductor Gauge	24 AWG, stranded
Frequency	Up to 350 MHz
Impedance	100 +/- 15 ohms
NEXT (Minimum)	40.3 dB/100 m (328.1 ft.) at 100 MHz; 32.2 dB/100 m (328.1 ft.) at 350 MHz
PS-NEXT	38.3 dB/100 m (328.1 ft.) at 100 MHz; 30.2 dB/100 m (328.1 ft.) at 350 MHz
Return Loss	20.1 dB/100 m (328.1 ft.) at 100 MHz; 16.3 dB/100 m (328.1 ft.) at 350 MHz
Standards	TIA/EIA-568-B.2 Category 5e

Note: Please read description carefully. Do not base your order on the picture presented.
