Buy BlackBox EVNSL83-0100, 100' CAT5e Patch Cable, Snagless Boots, Red - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Cable Length:: Cable Length: 100'
Color:: Color: Red

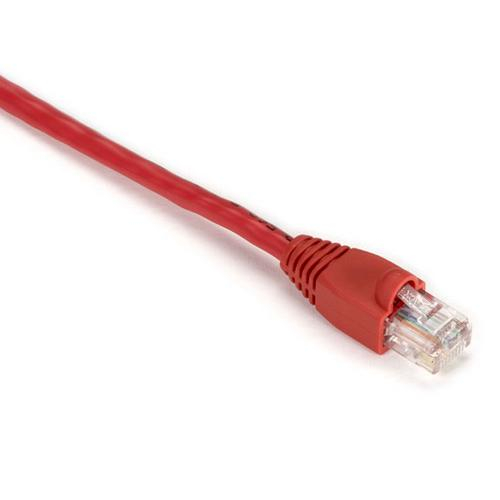

GigaBase 350 CAT5e Patch Cable, Snagless Boots, Red, 100-ft. (30.4-m)

The great choice for Gigabit applications.

Features:

Tested to 350 MHz.
Meet or exceed CAT5e T568B standards.
Specially designed for use with other GigaBase® components.
Improved near-end crosstalk (NEXT) compared to standard CAT5 cable.
Guaranteed for life!
Superior construction offers significant headroom.
Stranded conductors for short runs.
Tuned-plug design maintains a tighter twist and reduces noise.
Enhanced performance parameters and electrical characteristics.
Gold-plated contacts are designed for an insertion/extraction life of 1000 cycles.
Cable features four pairs, 24 AWG construction, basic RJ-45 connectors, straight pinning, and a PVC jacket.
25-packs are available. Add -25PAK to the end of the product code.

NOTE: This product works with all standard jacks, wallplates, and other RJ-45 hardware.

This product works with:

GigaStation High-Density Multimedia Patch Panels
GigaBase CAT5e Patch Panels
GigaBase CATe Jacks
GigaBase2 CATe Jacks
GigaStation Wallplates
GigaStation2 Wallplates

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Optional Accessories

Attenuation (Maximum)	24.2 dB/100 m (328.1 ft.) at 100 MHz; 49.3 dB/100 m (328.1 ft.) at 350 MHz
Cable Type	4-pair UTP
Conductor Gauge	24 AWG, stranded
Frequency	Up to 350 MHz
Impedance	100 ± 15 ohms
NEXT (Minimum)	40.3 dB/100 m (328.1 ft.) at 100 MHz; 32.2 dB/100 m (328.1 ft.) at 350 MHz
PS-NEXT	38.3 dB/100 m (328.1 ft.) at 100 MHz; 30.2 dB/100 m (328.1 ft.) at 350 MHz
Return Loss	20.1 dB/100 m (328.1 ft.) at 100 MHz; 16.3 dB/100 m (328.1 ft.) at 350 MHz
Standards	TIA/EIA-568-B.2 Category 5e

Product Details

Attenuation (Maximum)	24.2 dB/100 m (328.1 ft.) at 100 MHz; 49.3 dB/100 m (328.1 ft.) at 350 MHz
Cable Type	4-pair UTP
Conductor Gauge	24 AWG, stranded
Frequency	Up to 350 MHz
Impedance	100 ± 15 ohms
NEXT (Minimum)	40.3 dB/100 m (328.1 ft.) at 100 MHz; 32.2 dB/100 m (328.1 ft.) at 350 MHz
PS-NEXT	38.3 dB/100 m (328.1 ft.) at 100 MHz; 30.2 dB/100 m (328.1 ft.) at 350 MHz
Return Loss	20.1 dB/100 m (328.1 ft.) at 100 MHz; 16.3 dB/100 m (328.1 ft.) at 350 MHz
Standards	TIA/EIA-568-B.2 Category 5e

Optional Accessories

Optional Accessories

Note: Please read description carefully. Do not base your order on the picture presented.
