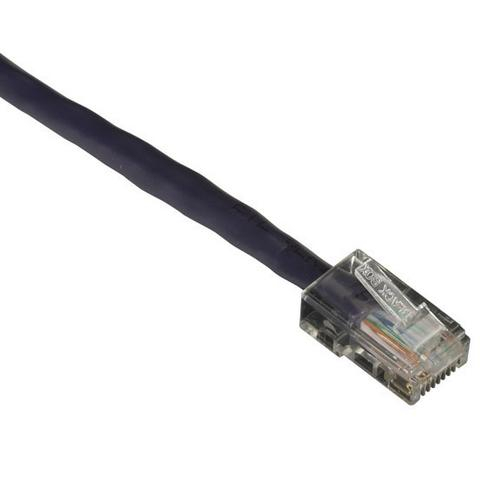

BlackBox, EVNSL79-0004, GigaBase CAT5e 350-MHz Ethernet Patch Cable - Unshielded, UTP, PVC, No Boot, RJ-45, Violet, 4-ft.

Features:

Tested to 350 MHz.
Meet or exceed CAT5e T568B standards.
Specially designed for use with other GigaBase® components.
Improved near-end crosstalk (NEXT) compared to standard CAT5 cable.

Further Details:

Superior construction offers significant headroom.
Stranded conductors for short runs.
Tuned-plug design maintains a tighter twist and reduces noise.
Enhanced performance parameters and electrical characteristics.
Gold-plated contacts are designed for an insertion/extraction life of 1000 cycles.
This cable has four pairs, 24 AWG construction, basic RJ-45 connectors, straight pinning, and a PVC jacket.
25-packs are available. Add -25PAK to the end of the product code.
This cable works with all standard jacks, wallplates, and other RJ-45 hardware.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Attenuation (Maximum)	24.2 dB/100 m (328 ft.) at 100 MHz; 49.3 dB/100 m at 350 MHz
Cable Type	4-pair stranded UTP
Conductor Gauge	24 AWG, stranded, tinned copper
Frequency	Up to 350 MHz
Impedance	100 +/- 15 ohms
NEXT (Minimum)	40.3 dB/100 m (328 ft.) at 100 MHz; 32.2 dB/100 m at 350 MHz
PS-NEXT	38.2 dB/100 m (328 ft.) at 100 MHz; 30.2 dB/100 m at 350 MHz
Return Loss	20.1 dB/100 m (328 ft.) at 100 MHz; 16.3 dB/100 m at 350 MHz
Standards	TIA/EIA-568-B.2 Category 5e

Product Details

Attenuation (Maximum)	24.2 dB/100 m (328 ft.) at 100 MHz; 49.3 dB/100 m at 350 MHz
Cable Type	4-pair stranded UTP
Conductor Gauge	24 AWG, stranded, tinned copper
Frequency	Up to 350 MHz
Impedance	100 +/- 15 ohms
NEXT (Minimum)	40.3 dB/100 m (328 ft.) at 100 MHz; 32.2 dB/100 m at 350 MHz
PS-NEXT	38.2 dB/100 m (328 ft.) at 100 MHz; 30.2 dB/100 m at 350 MHz
Return Loss	20.1 dB/100 m (328 ft.) at 100 MHz; 16.3 dB/100 m at 350 MHz
Standards	TIA/EIA-568-B.2 Category 5e

Note: Please read description carefully. Do not base your order on the picture presented.
