Options and Related Products

Cable Length:: Cable Length: 100'
Color:: Color: Gray

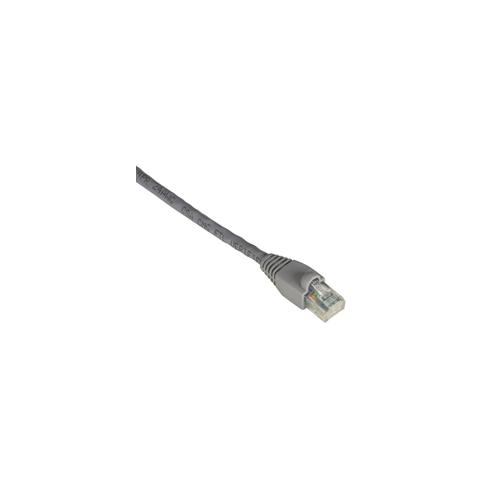

BlackBox, EVNSL640-0100, GigaTrue CAT6 Channel 550-MHz Patch Cable (UTP), Snagless Boots, Gray, 100-ft. (30.4-m)

Get CAT6 performance in an end-to-end BLACK BOX® GigaTrue® channel.

Features:

This CAT6 cable features snagless boots for easier installation.
Meets or exceeds CAT6 specifications.
Tested to 550-MHz.
Guaranteed for life!Get high-level CAT6 performance in an end-to-end BLACK BOX® GigaTrue® channel.
Cable construction: stranded, 24-AWG copper wire, RJ-45 connectors, 4-pair, T568B, PVC jacket, straight-pinned.
Improved attenuation provides cleaner data and video transmissions.
For 1000BASE-T, 100BASE-TX, 100BASE-VG, 155-Mbps ATM, 100-Mbps FDDI/CDDI, and other high-speed applications.
Perfect for full broadband and baseband video.
Stranded cable delivers full Power Sum performance.
Provides full-duplex operation for next-generation applications.
Meets balance requirements (LCL/LCTL), resulting in better transmission.

This cable works with:

GigaStation High-Density Multimedia Patch Panels
GigaTrue CAT6 Patch Panels
GigaTrue CAT6 Jacks
GigaTrue2 CAT6 Jacks
GigaStation Wallplates
GigaStation2 Wallplates
GigaStation2 Surface-Mount Housings
Snap Fittings
GigaStation2 Snap Fittings

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Attenuation	23.6 dB at 100 MHz; 39.1 dB at 250 MHz
Conductor Gauge	24 AWG
Delay Skew (Maximum)	25 ns/100 m (328 ft.)
Impedance	100 ± 15 ohms at 100 MHz; 100 ± 22 ohms at 100–550 MHz
Mutual Capacitance	56 pF/m (maximum)
NEXT	45.0 dB at 100 MHz; 39.0 dB at 250 MHz
PS-ACR	32 dB (typical) at 100 MHz
PS-NEXT	43.0 dB at 100 MHz; 37.0 dB at 250 MHz
Resistance	9.09 ohms/100 m (328 ft.)
Return Loss	22.5 dB at 100 MHz; 20.5 dB at 250 MHz
Standards	TIA/EIA-568-B.2-1 Category 6
Structured Return Loss	22.5 dB at 100 MHz; 20.5 dB at 250 MHz

Product Details

Attenuation	23.6 dB at 100 MHz; 39.1 dB at 250 MHz
Conductor Gauge	24 AWG
Delay Skew (Maximum)	25 ns/100 m (328 ft.)
Impedance	100 ± 15 ohms at 100 MHz; 100 ± 22 ohms at 100–550 MHz
Mutual Capacitance	56 pF/m (maximum)
NEXT	45.0 dB at 100 MHz; 39.0 dB at 250 MHz
PS-ACR	32 dB (typical) at 100 MHz
PS-NEXT	43.0 dB at 100 MHz; 37.0 dB at 250 MHz
Resistance	9.09 ohms/100 m (328 ft.)
Return Loss	22.5 dB at 100 MHz; 20.5 dB at 250 MHz
Standards	TIA/EIA-568-B.2-1 Category 6
Structured Return Loss	22.5 dB at 100 MHz; 20.5 dB at 250 MHz

Optional Accessories

Optional Accessories

Note: Please read description carefully. Do not base your order on the picture presented.
