BlackBox EVNSL214S-0010-90DS SpaceGAIN CAT6 Cable

Cable Length: 10', Connectors: 90° Down–Straight
  • Brand BlackBox
  • Part # EVNSL214S-0010-90DS
  • Model # SpaceGAIN
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Cable Length:
Cable Length: 10'
Connectors:
Connectors: 90° Down–Straight

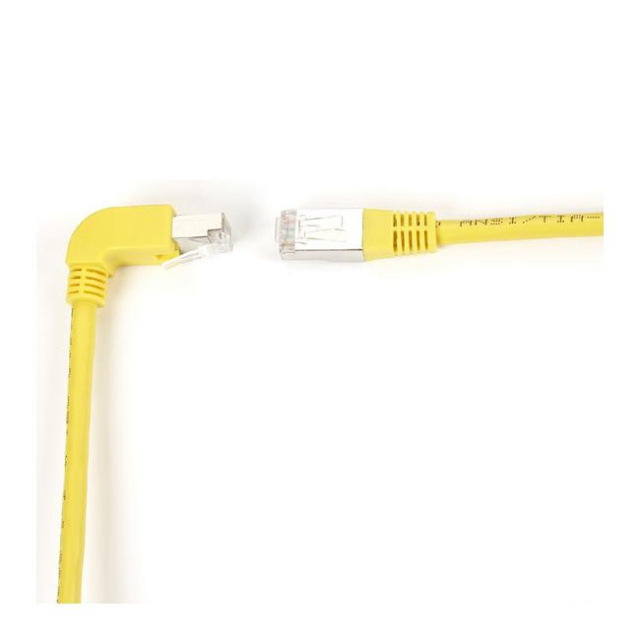

BlackBox, EVNSL214S-0010-90DS, SpaceGAIN CAT6 Shielded, Stranded 250-MHz Angled Patch Cable (SSTP, PIMF), 90° Down-Straight, Yellow, 10-ft. (3.0-m)

Tight fit? This cable has the right angle to save space.

Features:

  • Close quarters? This cable has the right angle to save space.
  • Shielded for noisy data center and desktop connections.
  • Guaranteed for life!
  • For the perfect fit, choose from a whole family of cables with almost every combination of right angles: down/down, down/straight, and down/up.
  • Tab faces up or down depending on the cable.
  • The up and down cables are perfect for streamlining patch panel and switch connections.
  • Reduce cabling congestion in crowded cabinets.
  • Make neater desktop equipment connections.
  • Eliminate cable managers.
  • Ideal for use in data, audio, and video applications and for horizontal network connections up to 1000BASE-T.
  • Meets or exceeds CAT6 specifications.
  • 250-MHz cable features four 26 AWG unshielded twisted wires, RJ-45 connectors, shielded connector, PVC jacket, shielded connector.
  • Cable construction: Foam skin insulation, aluminum/Mylar®tape around each pair, overall tinned copper braid, PVC jacket.
  • Unshielded cables are available in up, down, left and right connector combinations.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Optional Accessories
Reviews
Attenuation (Minimum)29.9 dB/100 m at 100 MHz; 49.5 dB/100 m at 250 MHz
Capacitance Unbalance (Pair to Ground)330 pF/100 m maximum
Conductor26 AWG, stranded, bare copper
FrequencyUp to 250 MHz
Impedance100 ± 15 ohms at 250 MHz
InsulationFoam-skin PE, 0.01" (0.27 mm)
NEXT (Minimum)44.3 dB/100 m at 100 MHz; 38.3 dB/100 m at 250 MHz
PS-NEXT42.3 dB/100 m at 100 MHz; 36.3 dB/100 m at 250 MHz
Outer Diameter0.23" (0.58 cm)
RoHSYes
JacketPVC (CM)
ShieldAluminum/Mylar®tape, tinned copper braid
StandardsUL®E196163-Y; IEC 60332-1-2; ISO/IEC 11801 ed 2; EN 50288-2 2; TIA/EIA-568-B.2 CAT6
Product Details
Attenuation (Minimum)29.9 dB/100 m at 100 MHz; 49.5 dB/100 m at 250 MHz
Capacitance Unbalance (Pair to Ground)330 pF/100 m maximum
Conductor26 AWG, stranded, bare copper
FrequencyUp to 250 MHz
Impedance100 ± 15 ohms at 250 MHz
InsulationFoam-skin PE, 0.01" (0.27 mm)
NEXT (Minimum)44.3 dB/100 m at 100 MHz; 38.3 dB/100 m at 250 MHz
PS-NEXT42.3 dB/100 m at 100 MHz; 36.3 dB/100 m at 250 MHz
Outer Diameter0.23" (0.58 cm)
RoHSYes
JacketPVC (CM)
ShieldAluminum/Mylar®tape, tinned copper braid
StandardsUL®E196163-Y; IEC 60332-1-2; ISO/IEC 11801 ed 2; EN 50288-2 2; TIA/EIA-568-B.2 CAT6
