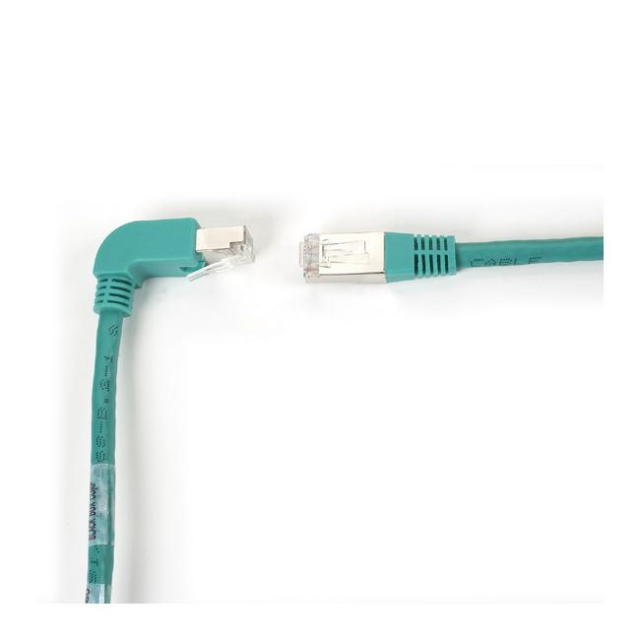

BlackBox, EVNSL212S-0006-90DS, SpaceGAIN CAT6 Shielded, Stranded 250-MHz Angled Patch Cable (SSTP, PIMF), 90° Down-Straight, Green, 6-ft. (1.8-m)

Tight fit? This cable has the right angle to save space.

Features:

Close quarters? This cable has the right angle to save space.
Shielded for noisy data center and desktop connections.
Guaranteed for life!
For the perfect fit, choose from a whole family of cables with almost every combination of right angles: down/down, down/straight, and down/up.
Tab faces up or down depending on the cable.
The up and down cables are perfect for streamlining patch panel and switch connections.
Reduce cabling congestion in crowded cabinets.
Make neater desktop equipment connections.
Eliminate cable managers.
Ideal for use in data, audio, and video applications and for horizontal network connections up to 1000BASE-T.
Meets or exceeds CAT6 specifications.
250-MHz cable features four 26 AWG unshielded twisted wires, RJ-45 connectors, shielded connector, PVC jacket, shielded connector.
Cable construction: Foam skin insulation, aluminum/Mylar^®tape around each pair, overall tinned copper braid, PVC jacket.
Unshielded cables are available in up, down, left and right connector combinations.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Attenuation (Minimum)	29.9 dB/100 m at 100 MHz; 49.5 dB/100 m at 250 MHz
Capacitance Unbalance (Pair to Ground)	330 pF/100 m maximum
Conductor	26 AWG, stranded, bare copper
Frequency	Up to 250 MHz
Impedance	100 ± 15 ohms at 250 MHz
Insulation	Foam-skin PE, 0.01" (0.27 mm)
NEXT (Minimum)	44.3 dB/100 m at 100 MHz; 38.3 dB/100 m at 250 MHz
PS-NEXT	42.3 dB/100 m at 100 MHz; 36.3 dB/100 m at 250 MHz
Outer Diameter	0.23" (0.58 cm)
RoHS	Yes
Jacket	PVC (CM)
Shield	Aluminum/Mylar^®tape, tinned copper braid
Standards	UL^®E196163-Y; IEC 60332-1-2; ISO/IEC 11801 ed 2; EN 50288-2 2; TIA/EIA-568-B.2 CAT6

Attenuation (Minimum)	29.9 dB/100 m at 100 MHz; 49.5 dB/100 m at 250 MHz
Capacitance Unbalance (Pair to Ground)	330 pF/100 m maximum
Conductor	26 AWG, stranded, bare copper
Frequency	Up to 250 MHz
Impedance	100 ± 15 ohms at 250 MHz
Insulation	Foam-skin PE, 0.01" (0.27 mm)
NEXT (Minimum)	44.3 dB/100 m at 100 MHz; 38.3 dB/100 m at 250 MHz
PS-NEXT	42.3 dB/100 m at 100 MHz; 36.3 dB/100 m at 250 MHz
Outer Diameter	0.23" (0.58 cm)
RoHS	Yes
Jacket	PVC (CM)
Shield	Aluminum/Mylar^®tape, tinned copper braid
Standards	UL^®E196163-Y; IEC 60332-1-2; ISO/IEC 11801 ed 2; EN 50288-2 2; TIA/EIA-568-B.2 CAT6
