Buy BlackBox EVNSL13E-0002, CAT5e 100-MHz Patch Cable, Violet, 2-ft - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Size:: Size: 2-ft
Color:: Color: Violet

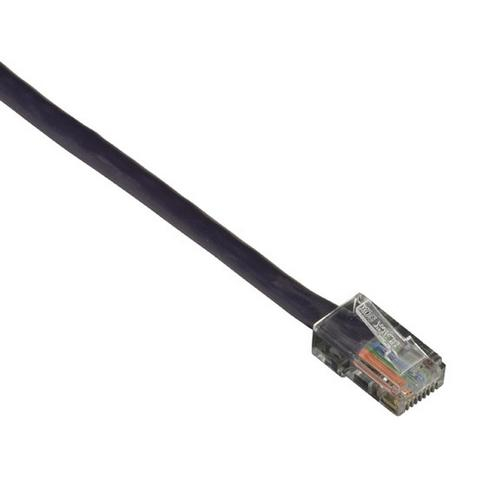

BlackBox, EVNSL13E-0002, CAT5e 100-MHz Ethernet Patch Cable - Unshielded, PVC, No Boot, Straight-Pinning, Violet, 2-ft

Features:

Cable is tested and certified to 100-MHz.
Meets or exceeds TIA CAT5e T568B standards.
Use for 100BASE-TX and other 100-MHz applications.
Features stranded conductors for short runs.
Basic connectors provide reliable performance.
Four pair, 24 AWG construction, RJ-45 connectors, straight pinning, and a PVC jacket.

This product works with:

GigaStation High-Density Multimedia Patch Panels
GigaBase CAT5e Patch Panels
GigaBase CAT5e Jacks
GigaBase2 CAT5e Jacks
GigaStation Wallplates
GigaStation2 Wallplates

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Attenuation	26.4 dB/100 m (328.1 ft.) at 100 MHz
Cable Type	4-pair UTP
Conductor Gauge	24 AWG, stranded
Delay Skew	45 ns/100 m
ELFEXT	26.4 dB/100 m (328.1 ft.) at 100 MHz
Frequency	Up to 100 MHz
Impedance	100 ± 15 ohms
Mutual Capacitance	15 pF/ft.
NEXT	35.3 dB/100 m (328.1 ft.) at 100 MHz
Propagation Delay	538 dB/100 m (328.1 ft.) at 100 MHz
PS-ELFEXT	20.8 dB/100 m (328.1 ft.) at 100 MHz
PS-NEXT	32.8 dB/100 m (328.1 ft.) at 100 MHz
Resistance	45 ohms/1000 ft.
Return Loss	19.0 dB/100 m (328.1 ft.) at 100 MHz
Structural Return Loss	16 dB/100 m (328.1 ft.) at 100 MHz

Product Details

Attenuation	26.4 dB/100 m (328.1 ft.) at 100 MHz
Cable Type	4-pair UTP
Conductor Gauge	24 AWG, stranded
Delay Skew	45 ns/100 m
ELFEXT	26.4 dB/100 m (328.1 ft.) at 100 MHz
Frequency	Up to 100 MHz
Impedance	100 ± 15 ohms
Mutual Capacitance	15 pF/ft.
NEXT	35.3 dB/100 m (328.1 ft.) at 100 MHz
Propagation Delay	538 dB/100 m (328.1 ft.) at 100 MHz
PS-ELFEXT	20.8 dB/100 m (328.1 ft.) at 100 MHz
PS-NEXT	32.8 dB/100 m (328.1 ft.) at 100 MHz
Resistance	45 ohms/1000 ft.
Return Loss	19.0 dB/100 m (328.1 ft.) at 100 MHz
Structural Return Loss	16 dB/100 m (328.1 ft.) at 100 MHz

Note: Please read description carefully. Do not base your order on the picture presented.
