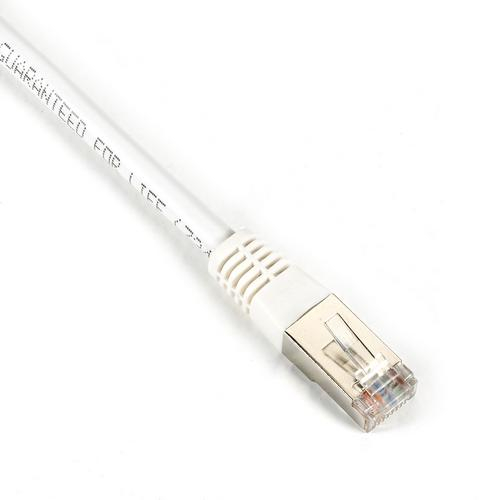

BlackBox, EVNSL0505MS-0002, 2 Foot Category 5e Ethernet Patch Cable, 100-MHz, Shielded, F/UTP, PVC, Solid, RJ45, White, 2 FT.

Features:

100-MHz backbone cable for noisy CAT5e runs.
Solid, dependable CAT5e backbone cable for new and existing networks.
Meets or exceeds CAT5e specifications.
Ideal for use in data, audio, and video applications and for horizontal network connections.
Guaranteed for life!
Cable construction: 24 AWG solid conductor, straight-pinned, 4-pair, T568B, molded hoods.
Shielding: Mylar® tape; tinned copper drain wire; aluminum/Mylar tape.
HDPE insulation: 0.009" (0.225 mm).

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
ACR	13.3 dB/100 m at 100 MHz
ACRF	23.8 db/100 m at 100 MHz
Attenuation	22.0 dB/100 m at 100 MHz
Cable Outside Diameter (Nominal)	0.2" (6.1 mm)
Capacitance Unbalance (Pair to Ground)	330 pF/100 m maximum
Conductor	24 AWG, solid, bare copper
Delay Skew (Maximum)	45 ns/100 m (328 ft.)
Impedance	1000 ± 15%
Insulation	HDPE: 0.009" (0.225 mm)
Jacket	PVC; CM; RoHS compliant
NEXT	35.3 dB/100 m at 100 MHz
Propagation Delay	538 ns/100 m at 100 MHz
PS-ACR	10.3 dB/100 m at 100 MHz
PS-ACRF	20.8 dB/100 m at 100 MHz
PS-NEXT	32.3 dB/100 m at 100 MHz
Return Loss	20.1 dB/100 m at 100 MHz
Standards	UL® 444; ISO/IEC 11801; TIA/EIA-568-B.2-1 CAT5e; 2002/95/EC (RoHS)
Temperature/Voltage Rating	167° F (75° C) at 300 V

General
ACR	13.3 dB/100 m at 100 MHz
ACRF	23.8 db/100 m at 100 MHz
Attenuation	22.0 dB/100 m at 100 MHz
Cable Outside Diameter (Nominal)	0.2" (6.1 mm)
Capacitance Unbalance (Pair to Ground)	330 pF/100 m maximum
Conductor	24 AWG, solid, bare copper
Delay Skew (Maximum)	45 ns/100 m (328 ft.)
Impedance	1000 ± 15%
Insulation	HDPE: 0.009" (0.225 mm)
Jacket	PVC; CM; RoHS compliant
NEXT	35.3 dB/100 m at 100 MHz
Propagation Delay	538 ns/100 m at 100 MHz
PS-ACR	10.3 dB/100 m at 100 MHz
PS-ACRF	20.8 dB/100 m at 100 MHz
PS-NEXT	32.3 dB/100 m at 100 MHz
Return Loss	20.1 dB/100 m at 100 MHz
Standards	UL® 444; ISO/IEC 11801; TIA/EIA-568-B.2-1 CAT5e; 2002/95/EC (RoHS)
Temperature/Voltage Rating	167° F (75° C) at 300 V

Note: Please read description carefully. Do not base your order on the picture presented.
