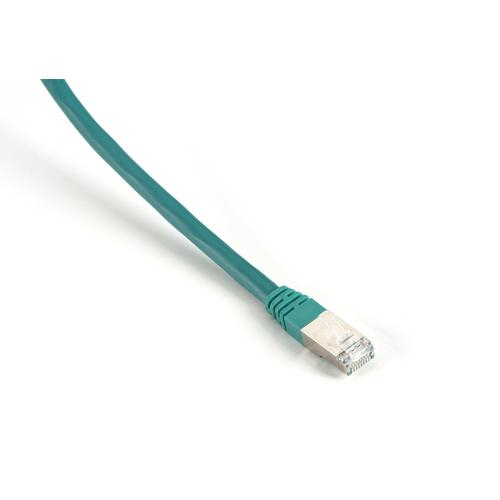

BlackBox, EVNSL0273GN-0005, CAT6 400-MHz Solid Ethernet Patch Cable - Shielded, Plenum, Molded Slim Line, Green, 5-ft

Features:

400-MHz backbone cable for CAT6 runs.
CAT6 backbone cable for new and existing networks.
Ideal for use in data, audio, and video applications and for horizontal network connections.
Shielding: Mylar tape, tinned copper drain wire; aluminum/Mylar tape.
Jacket: flame-retardant PVC (low smoke).
Meets or exceeds CAT6 specifications.
24 AWG solid conductor, FEP internal separator, straight-pinned, 4-pair, T568B, molded slim line boots.
FEP Insulation: 0.04" (1.02 ± 0.02 mm).

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

ACR	5.5 dB/100 m at 250 MHz
ACRF	19.8 dB/100 m at 250 MHz
Attenuation	32.8 dB/100 m at 250 MHz
Cable Outside Diameter (Nominal)	0.27" (0.7 cm)
Capacitance Unbalance (Pair to Ground)	330 pF/100 m maximum
Conductor	24 AWG, solid, bare copper
Delay Skew (Maximum)	40 ns/100 m (328 ft.)
Impedance	100 ± 15 ohms at 250 MHz
Jacket	Flame-retardant PVC (low smoke) (CMP); RoHS compliant
NEXT	38.3 dB/100 m at 250 MHz
Propagation Delay	534 ns/100 m at 250 MHz
PS-ACR	3.5 dB/100 m at 250 MHz
PS-ACRF	16.8 dB/100 m at 250 MHz
PS-NEXT	36.3 dB/100 m at 250 MHz
Return Loss	17.3 dB/100 m at 250 MHz
Standards	UL® 444; ISO/IEC 11801; TIA/EIA-568-B.2-1 CAT6; 2002/95/EC (RoHS)
Temperature/Voltage Rating	167° F (75° C) at 300 V

ACR	5.5 dB/100 m at 250 MHz
ACRF	19.8 dB/100 m at 250 MHz
Attenuation	32.8 dB/100 m at 250 MHz
Cable Outside Diameter (Nominal)	0.27" (0.7 cm)
Capacitance Unbalance (Pair to Ground)	330 pF/100 m maximum
Conductor	24 AWG, solid, bare copper
Delay Skew (Maximum)	40 ns/100 m (328 ft.)
Impedance	100 ± 15 ohms at 250 MHz
Jacket	Flame-retardant PVC (low smoke) (CMP); RoHS compliant
NEXT	38.3 dB/100 m at 250 MHz
Propagation Delay	534 ns/100 m at 250 MHz
PS-ACR	3.5 dB/100 m at 250 MHz
PS-ACRF	16.8 dB/100 m at 250 MHz
PS-NEXT	36.3 dB/100 m at 250 MHz
Return Loss	17.3 dB/100 m at 250 MHz
Standards	UL® 444; ISO/IEC 11801; TIA/EIA-568-B.2-1 CAT6; 2002/95/EC (RoHS)
Temperature/Voltage Rating	167° F (75° C) at 300 V

Note: Please read description carefully. Do not base your order on the picture presented.
