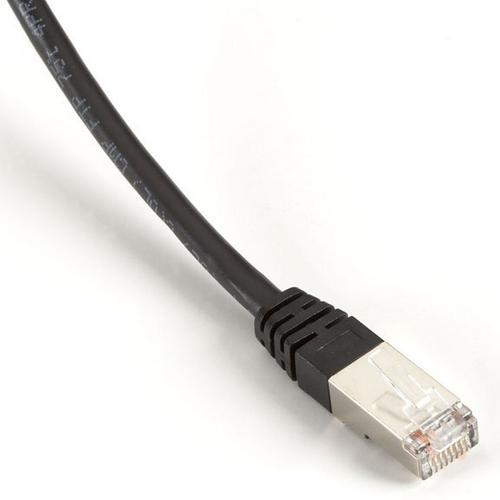

BlackBox EVNSL0173BK-0002 CAT5e 100-MHz Patch Cable, Black, 2-ft

Size: 2-ft, Color: Black
  • Brand BlackBox
  • Part # EVNSL0173BK-0002
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Size:
Size: 2-ft
Color:
Color: Black

BlackBox, EVNSL0173BK-0002, CAT5e 100-MHz Solid Ethernet Patch Cable - Shielded, Plenum, Molded Boot, Black, 2-ft

Ideal for use in data, audio, and video applications and for horizontal network connections.

Features:

  • 100-MHz backbone cable for environments requiring no fumes or flames.
  • Solid, dependable CAT5e backbone cable for new and existing networks.
  • Meets or exceeds CAT5e specifications.
  • Shielding
    • Mylar tape, tinned-copper drain wire; aluminum/Mylar tape
  • FEP Insulation
    • 0.03" (0.99 mm)
  • Jacket
    • Flame-retardant PVC (low smoke)
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
ACR13.3 dB/100 m at 100 MHz
ACRF23.8 dB/100 m at 100 MHz
Attenuation22.0 dB/100 m at 100 MHz
Cable Outside Diameter (Nominal)0.23" (0.58 cm)
Capacitance Unbalance (Pair to Ground)330 pF/100 m maximum
Conductor24 AWG, solid, bare copper
Delay Skew (Maximum)45 ns/100 m (328 ft.)
Impedance100 ± 15 ohms at 100 MHz
JacketFlame-retardant PVC (low smoke) (CMP)
NEXT35.3 dB/100 m at 100 MHz
Propagation Delay538 ns/100 m at 100 MHz
PS-ACR10.3 dB/100 m at 100 MHz
PS-ACRF20.8 dB/100 m at 100 MHz
PS-NEXT32.3 dB/100 m at 100 MHz
Return Loss20.1 dB/100 m at 100 MHz
RoHSYes
StandardsUL® 444; ISO/IEC 11801; TIA/EIA-568-B.2 CAT5e
Temperature/Voltage Rating167° F (75° C) at 300 V
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
ACR13.3 dB/100 m at 100 MHz
ACRF23.8 dB/100 m at 100 MHz
Attenuation22.0 dB/100 m at 100 MHz
Cable Outside Diameter (Nominal)0.23" (0.58 cm)
Capacitance Unbalance (Pair to Ground)330 pF/100 m maximum
Conductor24 AWG, solid, bare copper
Delay Skew (Maximum)45 ns/100 m (328 ft.)
Impedance100 ± 15 ohms at 100 MHz
JacketFlame-retardant PVC (low smoke) (CMP)
NEXT35.3 dB/100 m at 100 MHz
Propagation Delay538 ns/100 m at 100 MHz
PS-ACR10.3 dB/100 m at 100 MHz
PS-ACRF20.8 dB/100 m at 100 MHz
PS-NEXT32.3 dB/100 m at 100 MHz
Return Loss20.1 dB/100 m at 100 MHz
RoHSYes
StandardsUL® 444; ISO/IEC 11801; TIA/EIA-568-B.2 CAT5e
Temperature/Voltage Rating167° F (75° C) at 300 V
Note

Note: Please read description carefully. Do not base your order on the picture presented.
