Buy BlackBox ETNMSR04-0010, T1 Cable, DB15 Male/Female

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

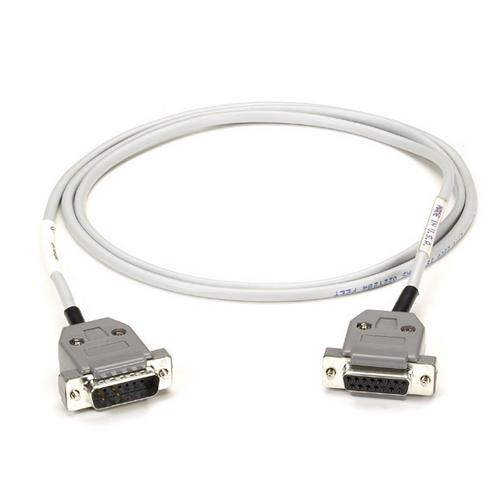

BlackBox, ETNMSR04-0010, T1 Cable, DB15 Male/DB15 Female, Straight-Pinning, 10-ft. (3.0-m)

The right cable for high-speed T1 connections.

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Conductor Material	Solid copper
Diameter	0.209"
Ground	24 AWG solid tinned copper ground wire
Impedance	100 ohms
Jacket Material	Gray, PVC
Mutual Capacitance	24 pF/ft.
Number of Conductors	3 pair
Shielding	Individually shielded pairs
Wire Gauge	24 AWG
Connectors	ETNMRS01, ETNMR01: (2) RJ-48C; ETNMRS02, ETNMR02: (2) DB15 M; ETNMRS03, ETNMR03: (1) DB15 M, (1) RJ-48C; ETNMRS04, ETNMR04: (1) DB15 M, (1) DB15 F

Conductor Material	Solid copper
Diameter	0.209"
Ground	24 AWG solid tinned copper ground wire
Impedance	100 ohms
Jacket Material	Gray, PVC
Mutual Capacitance	24 pF/ft.
Number of Conductors	3 pair
Shielding	Individually shielded pairs
Wire Gauge	24 AWG
Connectors	ETNMRS01, ETNMR01: (2) RJ-48C; ETNMRS02, ETNMR02: (2) DB15 M; ETNMRS03, ETNMR03: (1) DB15 M, (1) RJ-48C; ETNMRS04, ETNMR04: (1) DB15 M, (1) DB15 F

Note: Please read description carefully. Do not base your order on the picture presented.
