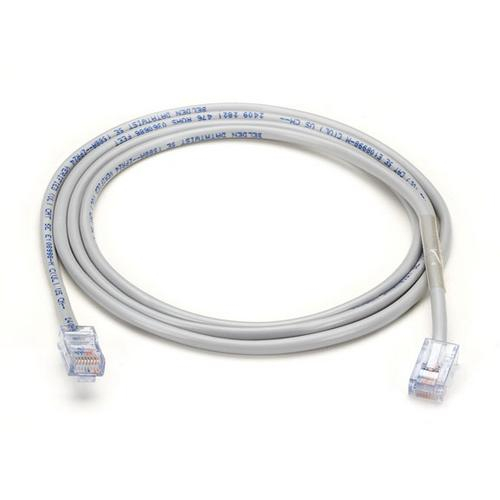

BlackBox, ETNMR01-0005, T1 Cable - RJ-48C to RJ-48C, Crossed-Pinning, 5' (1.5-m)

The right cable for high-speed T1 connections.

Features:

Cross-Pinning, RJ-48C / RJ-48C:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Approvals	NEC/(UL): CM, UL444; CEC/(UL): CM; EUCE Mark; RoHS; NEC/(UL): CM, UL444; NEMA: WC-63.1, CAT5e, UL-Verified; UL Flame Test: UL 1685 4L Loading; CSA Flame Test: FT1; UL: E108998M
Cable Type	CAT5e unbonded pair, unshielded
Conductors	Solid copper
Connectors	(2) RJ-45C Male
Delay	45 ns/100 m
Diameter	0.183" (4.6 mm)
Material	Jacket: Gray, PVC; Insultation: Polyoletin
Mutual Capacitance	15 pF/ft.
Number of Conductors	2-pair (blue/white blue and orange/white orange)
Resistance	9.38 ohms/100-m at 20C
Voltage	300 V RMS, maximum
Wire Gauge	24 AWG

Approvals	NEC/(UL): CM, UL444; CEC/(UL): CM; EUCE Mark; RoHS; NEC/(UL): CM, UL444; NEMA: WC-63.1, CAT5e, UL-Verified; UL Flame Test: UL 1685 4L Loading; CSA Flame Test: FT1; UL: E108998M
Cable Type	CAT5e unbonded pair, unshielded
Conductors	Solid copper
Connectors	(2) RJ-45C Male
Delay	45 ns/100 m
Diameter	0.183" (4.6 mm)
Material	Jacket: Gray, PVC; Insultation: Polyoletin
Mutual Capacitance	15 pF/ft.
Number of Conductors	2-pair (blue/white blue and orange/white orange)
Resistance	9.38 ohms/100-m at 20C
Voltage	300 V RMS, maximum
Wire Gauge	24 AWG

Note: Please read description carefully. Do not base your order on the picture presented.
