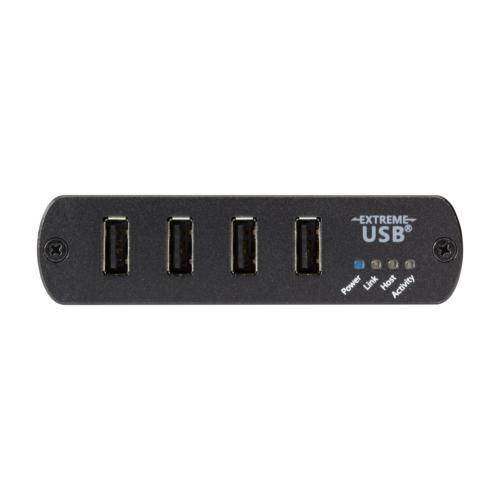

Black Box, EMD100USB-R, KVM-Over-IP Switchable Extender Receiver, LAN, 4 USB Type A, RJ45, 4-Port, 100m

Features:

Switch between high-speed USB 2.0 devices over an IP network.
Supports full-speed USB 2.0 up to 480 Mbps.
Supports simultaneous USB sharing that improves collaboration.
Connect to an Emerald KVM system to automatically switch when the target changes.
Features four USB ports that support USB devices, including USB hubs.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Approvals	Regulatory testing: FCC (Class B), CE (Class B), RoHS2 (CE);
Connectors	Local unit: (1) USB Type B, (1) RJ-45; Remote unit: (4) USB Type A, (1) RJ-45
Distance	Direct connect: Up to 328 feet (100 m) over solid-core CAT5e/6/7 cable; Network connect: Up to 328 feet (100 m) over solid-core CAT5e/6/7 cable; (One local to seven remote pairings supported for Simultaneous Users Interaction.)
Enclosure	Black anodized aluminum
Operating Humidity	20 to 80% relative humidity, non-condensing
Operating Temperature	32 to 122° F (0 to 50° C)
Power	Note: One power supply is included for remote unit. Local unit derives power from the USB interface. Power available to USB device at remote unit: Up to 2.4 A total among the ports, 600 mA at each USB port concurrently, 1 A max. per port when two or less being used
Power Consumption	Local unit: 200 mA maximum; Remote unit: Up to 2.4 A total among the ports; 600 mA at each USB port concurrently, but 1 A max. per port when two or less being used
Power Input	100/240 VAC, 50–60 Hz
Power Output	24 VDC, 1 A
Storage Temperature	-4 to 158° F (-20 to 70° C)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Approvals	Regulatory testing: FCC (Class B), CE (Class B), RoHS2 (CE);
Connectors	Local unit: (1) USB Type B, (1) RJ-45; Remote unit: (4) USB Type A, (1) RJ-45
Distance	Direct connect: Up to 328 feet (100 m) over solid-core CAT5e/6/7 cable; Network connect: Up to 328 feet (100 m) over solid-core CAT5e/6/7 cable; (One local to seven remote pairings supported for Simultaneous Users Interaction.)
Enclosure	Black anodized aluminum
Operating Humidity	20 to 80% relative humidity, non-condensing
Operating Temperature	32 to 122° F (0 to 50° C)
Power	Note: One power supply is included for remote unit. Local unit derives power from the USB interface. Power available to USB device at remote unit: Up to 2.4 A total among the ports, 600 mA at each USB port concurrently, 1 A max. per port when two or less being used
Power Consumption	Local unit: 200 mA maximum; Remote unit: Up to 2.4 A total among the ports; 600 mA at each USB port concurrently, but 1 A max. per port when two or less being used
Power Input	100/240 VAC, 50–60 Hz
Power Output	24 VDC, 1 A
Storage Temperature	-4 to 158° F (-20 to 70° C)
