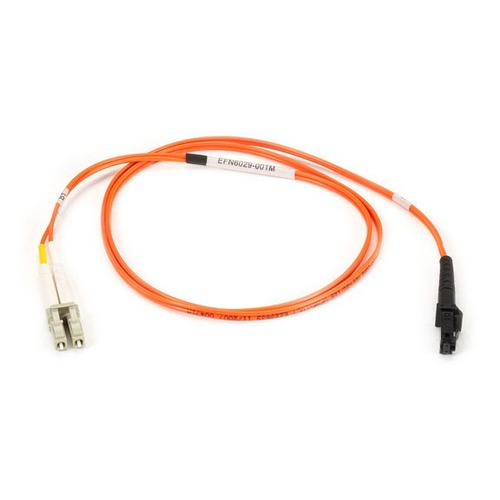

BlackBox, EFN6029-005M, Multimode, 50-Micron Duplex Fiber Optic Cable, PVC, MT-RJ-LC, 5-m (16.4-ft.)

Get more with 50-micron fiber cables: more bandwidth, more speed, more distance!

Features:

Cables boast an ultra-low insertion loss of less than 3 dB.
Cables feature two 900-µm buffered fibers surrounded by aramid yarn strength members.
Guaranteed for life!
Great for new buildings and upgrades to existing buildings.
Ideal for storage area networks (SANs), high-speed parallel optics interconnects, and other high-speed, high-capacity interconnect applications.
Ceramic connectors provide low signal loss, high reliability, and long life.
Provide total immunity to electrical interference.
Cables are RoHS compliant.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Bandwidth	500 MHz/km @ 850 nm
Bend Radius (Minimum)	Loaded: 5 cm (2 in.); Installed: 3 cm (1.2 in.)
Buffering Diameter	900 µm
Cladding Diameter	125 µm
Connector Durability	≤ 0.2 dB change, 1000 rematings
Connector Tensile Strength	= 0.2 dB change,>50 N
Core Diameter	50 µm
Ferrule	Ceramic
Fiber Count	2
Fiber Type	Multimode
Insertion Loss (Maximum)	<-3.0 dB/km
Operating Temperature	+14 to +140° F (-10 to +60° C)
Outer Diameter	2.8 mm
Standards	NEC® OFNR, CSA FT-4, UL® 1666 flame resistance for riser and general building applications
Tensile Strength (Short-Term)	Short Term: 1000 N (225 lb./ft.); Long Term: 480 N (108 lb./ft.)
Weight	9.4 lb./1000 ft. (14 kg/km)

Bandwidth	500 MHz/km @ 850 nm
Bend Radius (Minimum)	Loaded: 5 cm (2 in.); Installed: 3 cm (1.2 in.)
Buffering Diameter	900 µm
Cladding Diameter	125 µm
Connector Durability	≤ 0.2 dB change, 1000 rematings
Connector Tensile Strength	= 0.2 dB change,>50 N
Core Diameter	50 µm
Ferrule	Ceramic
Fiber Count	2
Fiber Type	Multimode
Insertion Loss (Maximum)	<-3.0 dB/km
Operating Temperature	+14 to +140° F (-10 to +60° C)
Outer Diameter	2.8 mm
Standards	NEC® OFNR, CSA FT-4, UL® 1666 flame resistance for riser and general building applications
Tensile Strength (Short-Term)	Short Term: 1000 N (225 lb./ft.); Long Term: 480 N (108 lb./ft.)
Weight	9.4 lb./1000 ft. (14 kg/km)

Note: Please read description carefully. Do not base your order on the picture presented.
