Buy BlackBox EDN37T-0005-MM, 5' (1.5-m) DB37 Interface Cable, Male/Male

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

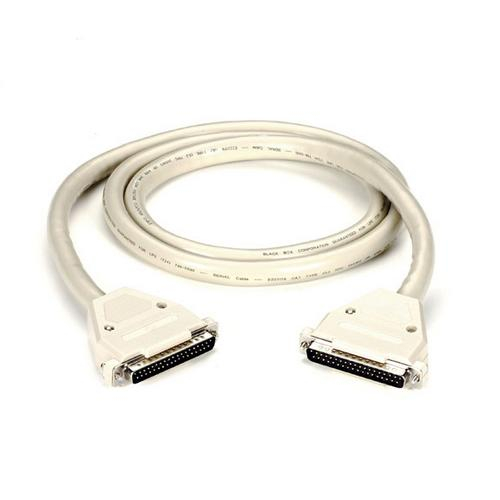

DB37 Interface Cable, Male/Male, 5-ft. (1.5-m)

Specially designed for RS-422/485/449 equipment.

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Cable Construction	Gray PVC
Conductor Gauge	24 AWG (7 x 32)
Distance (Maximum)	Per equipment specifications
Hoods	Black plastic
Mutual Capacitance	12 pF/ft. ± 2 pF/ft.
Outside Diameter	0.515
Resistance	25 ohms/1000 ft.
Shield	Foil with a drain wire
Connectors	(2) DB37, Male

Cable Construction	Gray PVC
Conductor Gauge	24 AWG (7 x 32)
Distance (Maximum)	Per equipment specifications
Hoods	Black plastic
Mutual Capacitance	12 pF/ft. ± 2 pF/ft.
Outside Diameter	0.515
Resistance	25 ohms/1000 ft.
Shield	Foil with a drain wire
Connectors	(2) DB37, Male

Note: Please read description carefully. Do not base your order on the picture presented.
