Options and Related Products

Cable Length:: Cable Length: 75'

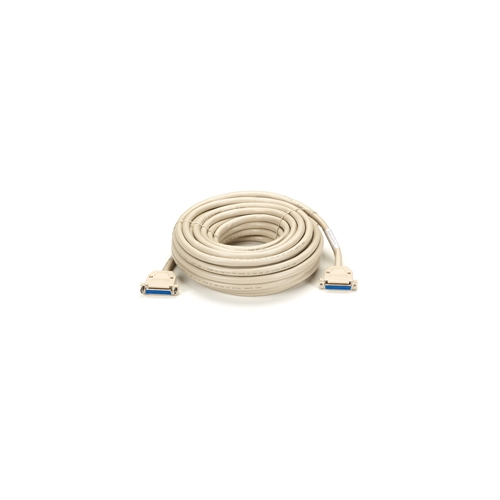

Black Box, EDN25C-0075-FF, Data Cable with Removable Hoods, 25 Conductors, F/F, 75'

Shielded cable with removable hoods for repinning.

Features:

Features an aluminum-foil shield for EMI/RFI protection and a drain wire.
Repinnable.
Transmit RS-232 data up to 500 feet at 9600 bps
All conductors are straight wired.
Guaranteed for life!
NEC® CL2 compliant. Not for use in risers or plenums.
Low capacitance.
Male screw locks are standard.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Cable Construction	PVC
Capacitance	12 pF/ft. ± 2 pF/ft.
Conductor Gauge	24 AWG (7 x 32), stranded
Cable Diameter	0.430"
Resistance	30 ohms/1000 ft.

Product Details

Cable Construction	PVC
Capacitance	12 pF/ft. ± 2 pF/ft.
Conductor Gauge	24 AWG (7 x 32), stranded
Cable Diameter	0.430"
Resistance	30 ohms/1000 ft.

Note: Please read description carefully. Do not base your order on the picture presented.
