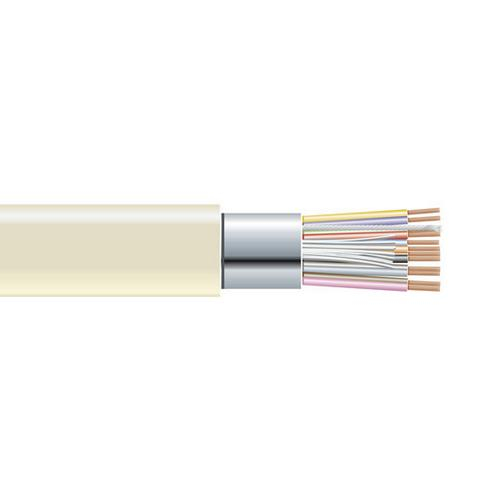

BlackBox, EDN16A-0500, Extended-Distance Data Cable, PVC, 16 Conductors, 500'

Send RS-232 data up to 500 feet in your office environment.

Features:

For use with RS-232, V.35, RS-422, and RS-485 interfaces.
Distances up to 500 feet (152.4 m).
Low capacitance, foil shielded. Ideal choice for office environments.
24 AWG stranded construction.
Guaranteed for life!

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Cable Type	Twisted pair, PVC jacket
Capacitance	12 pF/ft. ± 2 pF/ft.
Conductor Gauge	24 AWG (7 x 32 AWG) stranded
Resistance	25 ohms/1000 ft.
Shield	Foil wrap with drain wire

Product Details

Cable Type	Twisted pair, PVC jacket
Capacitance	12 pF/ft. ± 2 pF/ft.
Conductor Gauge	24 AWG (7 x 32 AWG) stranded
Resistance	25 ohms/1000 ft.
Shield	Foil wrap with drain wire

Note: Please read description carefully. Do not base your order on the picture presented.
