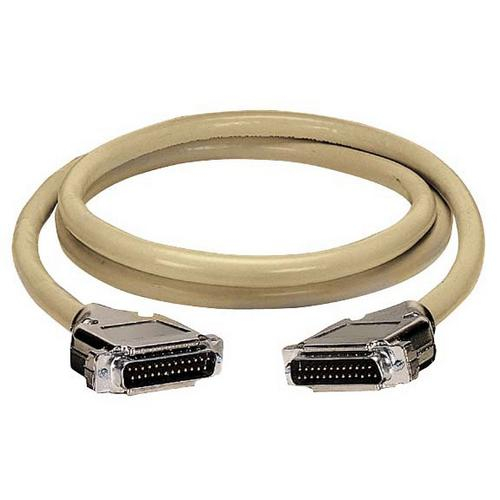

Buy BlackBox EBN07C-0010-MM, RS-232 Extended-Distance

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features

In extra-noisy environments, they're made for the short run, up to 50 feet (15.2 m).
In extra-quiet environments, use these cables for long runs-up to 500 feet (152.4 m).
24-AWG stranded copper conductors.
Die-cast, removable a DB25 connector.
7 conductors (3-1/2 pairs) pins 2–4, 6–8, 20.
NEC CL2.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Cable Construction	PVC
Conductor Gauge	24 AWG (7 x 32) stranded copper
Mutual Capacitance	Removable hoods: 12 pF/ft.; Thumbscrew non-removable hoods: 13.3 pF/ft.
Resistance	30 ohms/1000 ft.
Shield	100% aluminum foil, 85% tinned copper braid

Cable Construction	PVC
Conductor Gauge	24 AWG (7 x 32) stranded copper
Mutual Capacitance	Removable hoods: 12 pF/ft.; Thumbscrew non-removable hoods: 13.3 pF/ft.
Resistance	30 ohms/1000 ft.
Shield	100% aluminum foil, 85% tinned copper braid

Note: Please read description carefully. Do not base your order on the picture presented.
