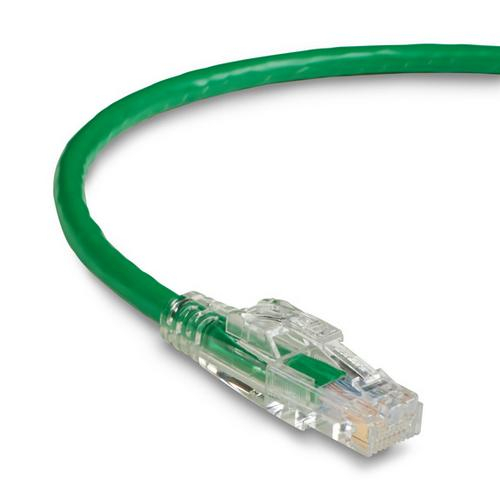

BlackBox, C6PC80-GN-20, 20' CAT6 550-MHz Patch Cable (UTP), Slimline, Green

Features:

Use for all your network connections.
Insert the optional Locking Pin to lock down ports.
Tested to 550 MHz.
Guaranteed for life!
Prevent unauthorized personnel from disrupting vital network connections.
Protect publicly accessible network connections.
Avoid downtime from accidental disconnects.
Cables stay locked in place - until YOU take them out.

Lock'em or not: The choice is yours. These one-of-a-kind cables give you the ability to lock down critical network ports when you need to - without buying new patch cords. Use these component-level cables for your everyday network connections. Then if you decide you need to secure network ports, you can. Just slip an optional Locking Pin into the built-in locking tab on the patented, slimline boot. Now your connection is absolutely protected from unauthorized removal and accidental disconnects. To unplug the cable, release with the Removal Key (sold separately).

Rugged, patented boots. No one is going to break these boots or pull out your cable! The cable is integrated into the extremely rugged, hard-polymer shell to protect it and to prevent tampering. The boot's snag-free, slimline form fits all standard RJ-45 openings.

Premium performance. You won't sacrifice performance for security. These component-level cables are tested to 550 MHz and guaranteed for life. Choose from five colors and six lengths. CAT6A cables are also available.

These cables work with:

GigaTrue 3 Locking Pins
Removal Tool
GigaTrue CAT6 Patch Panels
GigaTrue CAT6 Jacks
GigaTrue2 CAT6 Jacks
GigaStation Wallplates
GigaStation2 Wallplates
GigaStation2 Surface-Mount Housings

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

ACR	20.5 dB at 100 MHz; 0 dB at 250 MHz
ACRF	27.8 dB at 100 MHz; 19.8 dB at 250 MHz 13.0 at 550 MHz
Capacitance Unbalance	Pair to ground: 330 pF/100 m, maximum
Conductor Gauge	24 AWG, stranded, UTP, CM
DC Resistance Unbalance	5% maximum
Diameter	0.22" (5.7 mm)
Delay Skew	40 ns/100 m (328 ft.) maximum
Jacket	PVC, CM
Impedance	100 ± 15 ohms at 100 MHz; 100 ± 22 ohms at 100-550 MHz
Insertion Loss (Maximum)	23.8 dB at 100 MHz; 39.3 dB at 250 MHz; 62.2 dB at 550 MHz
Mutual Capacitance	56 pF/m, maximum
NEXT	44.3 dB at 100 MHz; 38.3 dB at 250 MHz; 33.2 dB at 550 MHz
Propagation Delay	550 MHz, 535.5 ns/100 m maximum
PS-ACR	18.5 dB at 100 MHz
PS-ACRF	24.8 dB at 100 MHz; 16.8 at 250 MHz; 10.0 at 550 MHz
PS-NEXT	42.3 dB at 100 MHz; 36.3 dB at 250 MHz; 31.2 dB at 550 MHz
Resistance	9.09 ohms/100 m (328 ft.)
Return Loss	19.0 dB at 100 MHz; 15.6 dB at 250 MHz
Standards	TIA/EIA-568-C.2 Category 6; ISO/IEC 11801 Class E; UL® 444; EN71-3, EPA 3050B; 2002/95/EC RoHS
Structured Return Loss	22.5 dB at 100 MHz; 20.5 dB at 250 MHz

Product Details

ACR	20.5 dB at 100 MHz; 0 dB at 250 MHz
ACRF	27.8 dB at 100 MHz; 19.8 dB at 250 MHz 13.0 at 550 MHz
Capacitance Unbalance	Pair to ground: 330 pF/100 m, maximum
Conductor Gauge	24 AWG, stranded, UTP, CM
DC Resistance Unbalance	5% maximum
Diameter	0.22" (5.7 mm)
Delay Skew	40 ns/100 m (328 ft.) maximum
Jacket	PVC, CM
Impedance	100 ± 15 ohms at 100 MHz; 100 ± 22 ohms at 100-550 MHz
Insertion Loss (Maximum)	23.8 dB at 100 MHz; 39.3 dB at 250 MHz; 62.2 dB at 550 MHz
Mutual Capacitance	56 pF/m, maximum
NEXT	44.3 dB at 100 MHz; 38.3 dB at 250 MHz; 33.2 dB at 550 MHz
Propagation Delay	550 MHz, 535.5 ns/100 m maximum
PS-ACR	18.5 dB at 100 MHz
PS-ACRF	24.8 dB at 100 MHz; 16.8 at 250 MHz; 10.0 at 550 MHz
PS-NEXT	42.3 dB at 100 MHz; 36.3 dB at 250 MHz; 31.2 dB at 550 MHz
Resistance	9.09 ohms/100 m (328 ft.)
Return Loss	19.0 dB at 100 MHz; 15.6 dB at 250 MHz
Standards	TIA/EIA-568-C.2 Category 6; ISO/IEC 11801 Class E; UL® 444; EN71-3, EPA 3050B; 2002/95/EC RoHS
Structured Return Loss	22.5 dB at 100 MHz; 20.5 dB at 250 MHz
