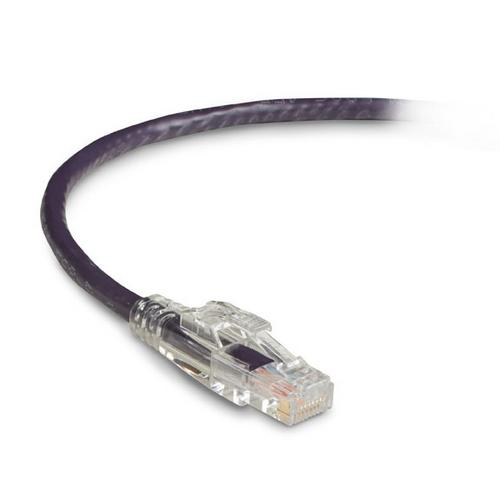

BlackBox, C6PC70-VT-05, 5' CAT6 550-MHz Lockable Patch Cable (UTP), Violet
Features:
- Choose between two levels of lockability or use as a standard snagless connector
- GigaTrue 3 Premium Cable exceeds industry standards
- Cable tested to 550 MHz, surpassing 250-MHz CAT6 standard
- Cabling ETL verified to ANSI/TIA-568-C2
- 50-micron gold-plated contacts provide superior conductivity
- Connector designed for an insertion and extraction life of 750 cycles
- Offers superior near-end crosstalk (NEXT) compared to standard CAT6 cable
- Snagless boots prevent connector damage due to snags during installation
- Ideal for 1000BASE-T, 100BASE-TX, 10BASE-T and other high-speed applications
Performance
Black Box GigaTrue 3 Premium CAT6 Patch Cables exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice, data, audio/video, and PoE signals. Tested to 550-MHz and 1-Gbps performance, these cables exceed the 250-MHz CAT6 specification, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.
These cables have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. The rugged, hard-polymer LockPORT boot and plug are integrated to provide increased strength in comparison to standard connectors.
These cables work with:
- GigaTrue 3 Locking Pins
- Removal Tool
- GigaTrue CAT6 Patch Panels
- GigaTrue2 CAT6 Jacks
- GigaStation2 Wallplates
- GigaStation2 Surface-Mount Housings
