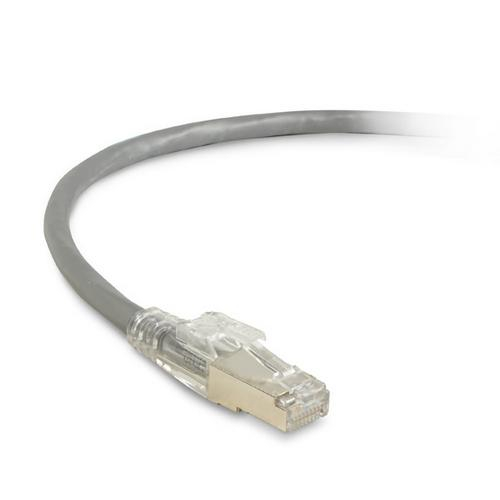

BlackBox C6APC80S-GY-15 15' CAT6A Patch Cable F/UTP

Cable Length: 15', Color: Gray
  • Brand BlackBox
  • Part # C6APC80S-GY-15
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Cable Length:
Cable Length: 15'
Color:
Color: Gray

BlackBox, C6APC80S-GY-15, TAA GigaTrue 3 CAT6A 650-MHz Patch Cable (F/UTP), Slimline, Lockable

Features:

  • Use for all your network connections.
  • Insert the optional Locking Pin to lock down ports.
  • 100% foil shielded to prevent ANEXT.
  • Guaranteed for life!
  • Prevent unauthorized personnel from disrupting vital network connections.
  • Protect publicly accessible network connections.
  • Avoid downtime from accidental disconnects.
  • Cables stay locked in place-until YOU take them out.

Lock'em or not: The choice is yours. These one-of-a-kind cables give you the ability to lock down critical network ports when you need to-without buying new patch cords. Use these component-level cables for your everyday network connections. Then if you decide you need to secure network ports, you can. Just slip an optional Locking Pin into the built-in locking tab on the patented, slimline boot. Now your connection is absolutely protected from unauthorized removal and accidental disconnects. To unplug the cable, release with the Removal Key (sold separately).

Rugged, patented boots. No one is going to break these boots or pull out your cable! The cable is integrated into the extremely rugged, hard-polymer shell to protect it and to prevent tampering. The boot's snag-free, slimline form fits all standard RJ-45 openings.

Premium performance. You won't sacrifice performance for security. These component-level cables are tested to 650 MHz and guaranteed for life. Choose from four colors and six lengths. CAT6 cables are also available.

These cables work with:

  • Removal Tool
  • GigaTrue 3 Locking Cables
  • CAT6A Patch Panel
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Optional Accessories
Reviews
ACRF27.8 dB at 100 MHz; 13.8 dB at 500 MHz; 11.5 at 650 MHz
Center FillerYes
Conductor Gauge26 AWG, 7/34 tinned copper
DC Resistance14.0 ohms
Diameter0.22" (5.9 mm)
Delay Skew< 25 ns
JacketPVC CMR
Impedance100 ± 15 ohms at 100 MHz; 100 ± 20 ohms at 100-550 MHz
Insertion Loss (Maximum)28.7 dB at 100 MHz; 67.9 dB at 500 MHz; 78.5 dB at 650 MHz
Mutual Capacitance13.5 pF/ft at 1.0 MHz
NEXT44.3 dB at 100 MHz; 33.8 dB at 500 MHz; 32.1 dB at 650 MHz
PS-ANEXT62.5 dB at 100 MHz
PS-ACRF24.8 dB at 100 MHz; 10.8 at 500 MHz; 8.5 at 650 MHz
PS-NEXT42.3 dB at 100 MHz; 31.8 dB at 500 MHz; 30.1 dB at 650 MHz
Return Loss19 dB at 100 MHz
Shielding100% foil wrap with 26 AWG tinned-copper drain wire
StandardsTIA-568-C.2 CAT6A; UL E196163-G, RoHS
Velocity of Propagation68%
Voltage300V
Product Details
ACRF27.8 dB at 100 MHz; 13.8 dB at 500 MHz; 11.5 at 650 MHz
Center FillerYes
Conductor Gauge26 AWG, 7/34 tinned copper
DC Resistance14.0 ohms
Diameter0.22" (5.9 mm)
Delay Skew< 25 ns
JacketPVC CMR
Impedance100 ± 15 ohms at 100 MHz; 100 ± 20 ohms at 100-550 MHz
Insertion Loss (Maximum)28.7 dB at 100 MHz; 67.9 dB at 500 MHz; 78.5 dB at 650 MHz
Mutual Capacitance13.5 pF/ft at 1.0 MHz
NEXT44.3 dB at 100 MHz; 33.8 dB at 500 MHz; 32.1 dB at 650 MHz
PS-ANEXT62.5 dB at 100 MHz
PS-ACRF24.8 dB at 100 MHz; 10.8 at 500 MHz; 8.5 at 650 MHz
PS-NEXT42.3 dB at 100 MHz; 31.8 dB at 500 MHz; 30.1 dB at 650 MHz
Return Loss19 dB at 100 MHz
Shielding100% foil wrap with 26 AWG tinned-copper drain wire
StandardsTIA-568-C.2 CAT6A; UL E196163-G, RoHS
Velocity of Propagation68%
Voltage300V
