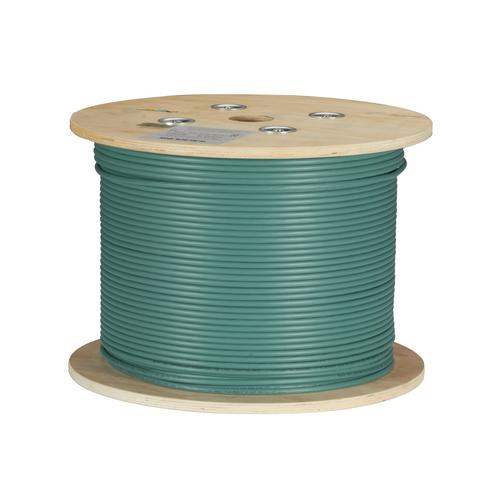

C6ABC51S-GN-1000, CAT6A Bulk Cable, PVC, Green, Shielded, Plenum, 1000ft

Features:

Tested up to 500 MHz.
Foil shield construction virtually eliminates alien crosstalk.
A center isolation member maintains pair separation for optimal NEXT performance.
Supports IEEE 802.3 and 10GBASE-T, and TIA 568-C.2. ETL tested.
Construction: Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar tape.
Smaller outside diameter than normal; CAT6A UTP. (0.271")
Solid Bulk Cable - Shielded, Plenum, 1000-ft. Spool

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.

Technical Details

ACRF	37.8 dB at 100 MHz; 29.8 dB at 250 MHz; 26.9 dB at 350 MHz; 20.8 dB at 500 MHz; 21.5 dB at 650 MHz (previously referred to as equal level far end crosstalk (ELFEXT)
Bend Radius	2.17" (55 mm)
Conductors	4-pair, 23 AWG, solid copper
Construction	Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar tape
Insertion Loss (Maximum)	19.1 at 100 MHz; 45.3 at 500 MHz
Insulation	Fluoropolymer (FEP)
Jacket	Low-smoke, flame-retardant PVC
NEXT	45.3 dB at 100 MHz; 39.3 dB at 250 MHz; 37.1 dB at 350 MHz; 34.8 dB at 500 MHz; 33.1 dB at 650 MHz
Outside Diameter	0.271" (6.9 mm)
PS-NEXT	43.3 dB at 100 MHz; 37.3 dB at 250 MHz; 35.1 dB at 350 MHz; 32.8 dB at 500 MHz
Return Loss	20.1 at 100 MHz; 15.5 at 500 MHz
RoHS	Yes
Standards	IEEE 802.an; TIA 568-C.2; UL®, ETL Tested
Weight	Not on reel: 48.3 lb. (21.9 kg)

ACRF	37.8 dB at 100 MHz; 29.8 dB at 250 MHz; 26.9 dB at 350 MHz; 20.8 dB at 500 MHz; 21.5 dB at 650 MHz (previously referred to as equal level far end crosstalk (ELFEXT)
Bend Radius	2.17" (55 mm)
Conductors	4-pair, 23 AWG, solid copper
Construction	Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar tape
Insertion Loss (Maximum)	19.1 at 100 MHz; 45.3 at 500 MHz
Insulation	Fluoropolymer (FEP)
Jacket	Low-smoke, flame-retardant PVC
NEXT	45.3 dB at 100 MHz; 39.3 dB at 250 MHz; 37.1 dB at 350 MHz; 34.8 dB at 500 MHz; 33.1 dB at 650 MHz
Outside Diameter	0.271" (6.9 mm)
PS-NEXT	43.3 dB at 100 MHz; 37.3 dB at 250 MHz; 35.1 dB at 350 MHz; 32.8 dB at 500 MHz
Return Loss	20.1 at 100 MHz; 15.5 at 500 MHz
RoHS	Yes
Standards	IEEE 802.an; TIA 568-C.2; UL®, ETL Tested
Weight	Not on reel: 48.3 lb. (21.9 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
