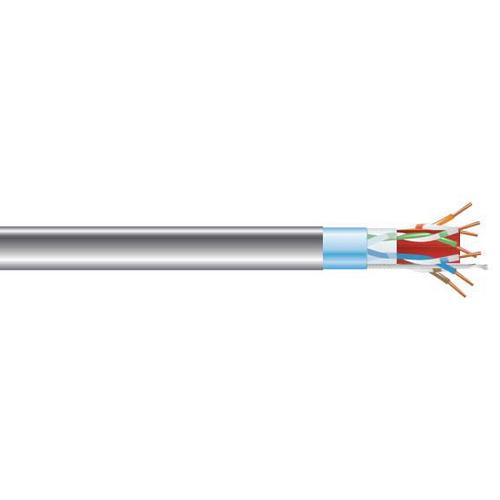

C6ABC50S-GY-1000, CAT6A Solid Bulk Cable, PVC, Gray, Shielded, 1000ft

Features:

Use with Black Box CAT6A components for a 10GBASE-T channel.
Tested up to 650 MHz.
Foil shield construction virtually eliminates alien crosstalk.
A center isolation member maintains pair separation for optimal NEXT performance.
Supports IEEE 802.3 and 10GBASE-T, and TIA 568-C.2. ETL tested.
Construction: Internal separator, FEP insulation, dielectric tape, drain wire, aluminum/Mylar tape.
Smaller outside diameter than normal CAT6A UTP (0.283").

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

ACRF	27.8 dB at 100 MHz; 19.8 dB at 250 MHz; 18.3 dB at 300 MHz; 13.8 dB at 500 MHz; 11.5 dB at 650 MHz (previously referred to as equal level far end crosstalk (ELFEXT)
Conductors	4-pair, 23 AWG, solid copper
Construction	Internal separator, FEP insulation, polyester tape, drain wire, aluminum/Mylar tape
Insertion Loss (Maximum)	19.1 at 100 MHz; 31.1 at 250 MHz; 34.3 at 300 MHz; 45.3 at 500 MHz; 52.3 at 650 MHz
Insulation	HDPE
Jacket	PVC
NEXT	44.3 dB at 100 MHz; 38.3 dB at 250 MHz; 37.1 dB at 300 MHz; 33.8 dB at 500 MHz; 32.1 dB at 650 MHz
Outside Diameter	0.283" (7.3 mm)
PS-ACRF	24.8 dB at 100 MHz; 16.8 dB at 250 MHz; 15.3 dB at 300 MHz; 10.8 dB at 500 MHz; 8.5 dB at 650 MHz
PS-NEXT	42.3 dB at 100 MHz; 36.3 dB at 250 MHz; 35.1 dB at 300 MHz; 31.8 dB at 500 MHz; 30.1 dB at 650 MHz
Return Loss	21.1 at 100 MHz; 16.5 at 500 MHz; 15.7 at 650 MHz
RoHS	Yes
Standards	IEEE 802.an; TIA 568-C.2; UL®
Weight	Not on reel: 48.3 lb. (21.9 kg)

ACRF	27.8 dB at 100 MHz; 19.8 dB at 250 MHz; 18.3 dB at 300 MHz; 13.8 dB at 500 MHz; 11.5 dB at 650 MHz (previously referred to as equal level far end crosstalk (ELFEXT)
Conductors	4-pair, 23 AWG, solid copper
Construction	Internal separator, FEP insulation, polyester tape, drain wire, aluminum/Mylar tape
Insertion Loss (Maximum)	19.1 at 100 MHz; 31.1 at 250 MHz; 34.3 at 300 MHz; 45.3 at 500 MHz; 52.3 at 650 MHz
Insulation	HDPE
Jacket	PVC
NEXT	44.3 dB at 100 MHz; 38.3 dB at 250 MHz; 37.1 dB at 300 MHz; 33.8 dB at 500 MHz; 32.1 dB at 650 MHz
Outside Diameter	0.283" (7.3 mm)
PS-ACRF	24.8 dB at 100 MHz; 16.8 dB at 250 MHz; 15.3 dB at 300 MHz; 10.8 dB at 500 MHz; 8.5 dB at 650 MHz
PS-NEXT	42.3 dB at 100 MHz; 36.3 dB at 250 MHz; 35.1 dB at 300 MHz; 31.8 dB at 500 MHz; 30.1 dB at 650 MHz
Return Loss	21.1 at 100 MHz; 16.5 at 500 MHz; 15.7 at 650 MHz
RoHS	Yes
Standards	IEEE 802.an; TIA 568-C.2; UL®
Weight	Not on reel: 48.3 lb. (21.9 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
