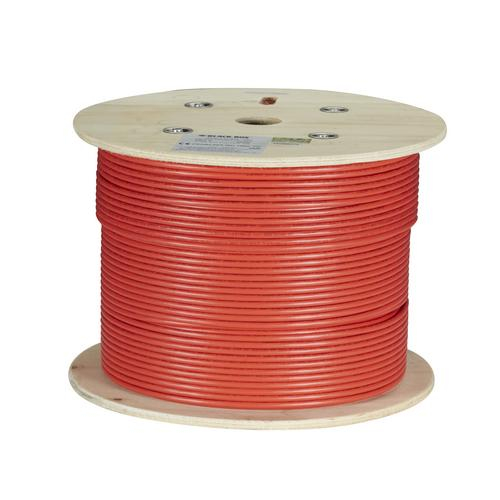

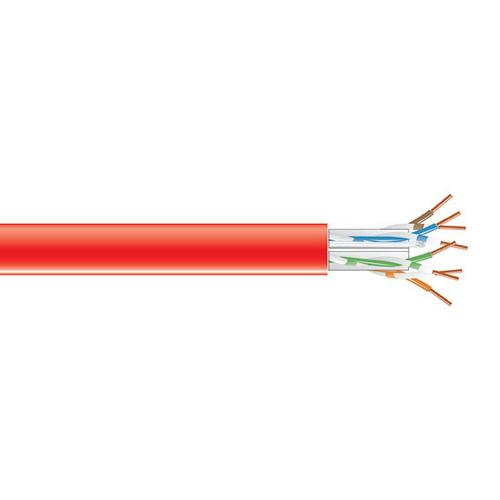

C6ABC50-RD-1000, CAT6A Solid Bulk Cable, PVC, Red, 1000ft Spool

Features:

ETL Verified for component-level performance and as part of our CAT6A channel.
Supports PoE and PoE+ for VoIP, WAP, and security applications.
Ideal for server-to-server/-storage/-switch, distributed backbone, and zone connections

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

ACRF	27.8 dB/100 m at 100 MHz; 19.84 dB/100 m at 250 MHz; 14.74 dB at 500 MHz
Approvals	ETL Verified; ANSI/TIA-568-C.2 Category 6A; IEEE 802.3 an; UL® 444, 1666; UL® E196163-P Dimensions Diameter: 0.318"
Capacitance Unbalance (Pair to Ground)	330 pF/100 m max.
Conductor	23-AWG solid, bare copper
Cross Web (PVC)	Flame-resistant PE
DCR Unbalance	4% max.
Delay Skew	45 ns/100 m at 650 MHz max.
Insertion Loss (Maximum)	19.14 dB/100 m at 100 MHz; 31.07 dB/100 m at 250 MHz; 42.71 dB at 500 MHz
Insulation	HDPE
Jacket	Flame-resistant PVC, CMP
NEXT	44.30 dB/100 m at 100 MHz; 38.33 dB/100 m at 250 MHz; 34.50 dB at 500 MHz
Number of Pairs	4 Pairs
Outer Diameter	0.334" (8.5 +/- 0.2 mm)
Propagation Delay	537.6 dB/100 m at 100 MHz; 536.28 dB/100 m at 250 MHz; 535.7 dB at 500 MHz
PS-AACRF	38.2 dB/100 m at 100 MHz; 30.24 dB/100 m at 250 MHz; 25.14 dB at 500 MHz
PS-ACRF	24.8 dB/100 m at 100 MHz; 16.84 dB/100 m at 250 MHz; 11.74 dB at 500 MHz
PS-ANEXT	62.5 dB/100 m at 100 MHz; 56.53 dB/100 m at 250 MHz; 52.7 dB at 500 MHz
PS-NEXT	42.30 dB/100 m at 100 MHz; 36.33 dB/100 m at 250 MHz; 32.50 dB at 500 MHz
Return Loss	20.11 dB/100 m at 100 MHz; 17.32 dB/100 m at 250 MHz; 15.53 dB at 500 MHz

ACRF	27.8 dB/100 m at 100 MHz; 19.84 dB/100 m at 250 MHz; 14.74 dB at 500 MHz
Approvals	ETL Verified; ANSI/TIA-568-C.2 Category 6A; IEEE 802.3 an; UL® 444, 1666; UL® E196163-P Dimensions Diameter: 0.318"
Capacitance Unbalance (Pair to Ground)	330 pF/100 m max.
Conductor	23-AWG solid, bare copper
Cross Web (PVC)	Flame-resistant PE
DCR Unbalance	4% max.
Delay Skew	45 ns/100 m at 650 MHz max.
Insertion Loss (Maximum)	19.14 dB/100 m at 100 MHz; 31.07 dB/100 m at 250 MHz; 42.71 dB at 500 MHz
Insulation	HDPE
Jacket	Flame-resistant PVC, CMP
NEXT	44.30 dB/100 m at 100 MHz; 38.33 dB/100 m at 250 MHz; 34.50 dB at 500 MHz
Number of Pairs	4 Pairs
Outer Diameter	0.334" (8.5 +/- 0.2 mm)
Propagation Delay	537.6 dB/100 m at 100 MHz; 536.28 dB/100 m at 250 MHz; 535.7 dB at 500 MHz
PS-AACRF	38.2 dB/100 m at 100 MHz; 30.24 dB/100 m at 250 MHz; 25.14 dB at 500 MHz
PS-ACRF	24.8 dB/100 m at 100 MHz; 16.84 dB/100 m at 250 MHz; 11.74 dB at 500 MHz
PS-ANEXT	62.5 dB/100 m at 100 MHz; 56.53 dB/100 m at 250 MHz; 52.7 dB at 500 MHz
PS-NEXT	42.30 dB/100 m at 100 MHz; 36.33 dB/100 m at 250 MHz; 32.50 dB at 500 MHz
Return Loss	20.11 dB/100 m at 100 MHz; 17.32 dB/100 m at 250 MHz; 15.53 dB at 500 MHz

Note: Please read description carefully. Do not base your order on the picture presented.
