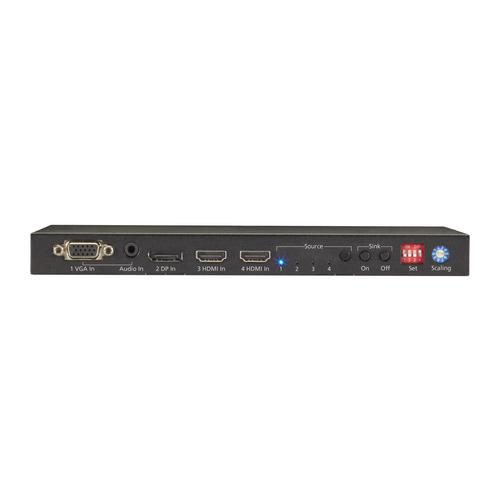

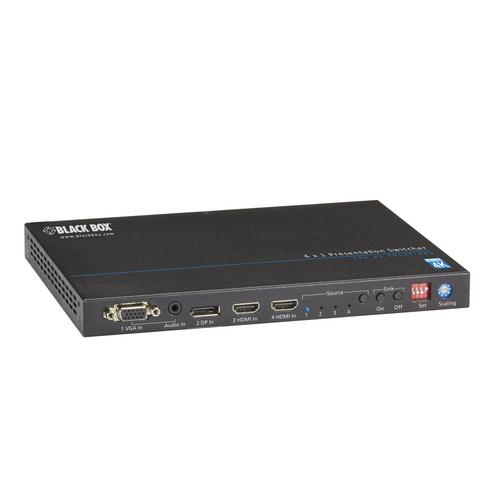

BlackBox AVSC-0401H Presentation Switcher

  • Brand BlackBox
  • Part # AVSC-0401H
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

BlackBox, AVSC-0401H, Presentation Switcher - 4K, HDMI, DisplayPort, VGA, HDBaseT, 4x1

Features:

  • Supports all standard video formats including Display Port, HDMI, DVI (with adapters), and VGA.
  • Up- or down-scale up to 4K (UHD) video to match display resolution for fast, seamless switching.
  • Auto-switching ensures that the last connected source is always displayed.
  • Built-in HDBaseT extension up to 330 ft. for connection to remote displays.
  • Control via RS-232 and front panel buttons.
  • CEC support to control source devices.
  • Analog audio extraction to connect to separate audio amplifier or speaker system.
  • DIP switch provided to adjust automatic or manual switching mode.
  • LED indicators for active input and power.
  • PoH line-powering for connected HDBaseT receivers.

Simplify classroom and small office system integration. Install this multi-format presentation switcher/scaler beneath conference tables and in lecterns to provide localized presentation switching support. Built-in HDBaseT extension up to 330 ft. for connection to remote displays. Control via RS-232 and front panel buttons. CEC support to control source devices. Analog audio extraction to connect to separate audio amplifier or speaker system. PoH line-powering for connected HDBaseT receivers. DIP switch provided to adjust automatic or manual switching mode. LED indicators for active input and power.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Optional Accessories
Reviews
Audio
Output1 x balanced stereo audio outputs: 5-pin phoenix connector
Control
Control MethodRS-232, front panel buttons, contact closures
General
ApprovalsCE, FCC
Physical
Dimensions6.46"H x 8.66"W x 0.83"D (16.4 x 22 x 2.1 cm)
Rack Space Required1/2U height
Weight1.8 lb (0.82 kg)
Power
Electrical Fast Transient/BurstData communication cord: 1 kVPower cord : 2 kV
ESD ProtectionHuman-body Model: ±8kV(Air-gap discharge)±4kV(Contact discharge)
Power Consumption22 Watts, maximum
Power SupplyDC12V/3 Amp
Surge ProtectionVoltage: ±1 kV (ten times respectively for the positive and negative voltage)
Video
Deep Color1080p.48bit4K:24bit
Input2 x HDMI IN1 x DisplayPort IN1 x VGA IN1 x Stereo audio (embedded with VGA inputs)
Input DDC Signal5V p-p
Input ResolutionVESA:640 x 480at60Hz800 x 600at60Hz1024 x 768at60Hz, 1280 x 768at60Hz1280 x 800at60Hz1280 x 960at60Hz1280 x 1024at60Hz1360 x 768at60Hz1366 x 768at60Hz1440 x 900at60Hz1600 x 900at60Hz1600 x 1200at60Hz1680 x 1050at60Hz1920 x 1200at60HzHDTV: 720 x 480at60Hz720 x 576at50Hz1280 x 720at50/60Hz1920 x 1080at50/60Hz3840 x 2160at30HzMNOTE: HDMI/DP input up to 4Kat30Hz, VGA input up to 1920x1200at60Hz
Input Signal TypeHDMI 1.4
Input Video Level0.5-1.2 V p-p
Maximum Pixel Clock297 MHz

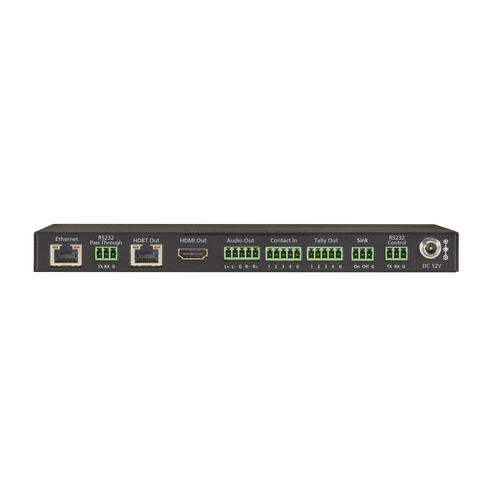

Output1 x HDMI OUT1 x HDBaseT OUT1 x Stereo audio
Output Resolution SupportVESA:640 x 480at60Hz800 x 600at60Hz1024 x 768at60Hz1280 x 768at60Hz1280 x 800at60Hz1280 x 960at60Hz1280 x 1024at60Hz1360 x 768at60Hz1366 x 768at60Hz1440 x 900at60Hz1600 x 900at60Hz1600 x 1200at60Hz1680 x 1050at60Hz1920 x 1200at60HzHDTV:720 x 480at60Hz720 x 576at50Hz1280 x 720at50/60Hz1920 x 1080at50/60Hz3840 x 2160at30Hz
Output Signal TypeHDMI 1.4, HDBaseT
Video Impedance100 Ω
Environmental
Humidity10% to 90%, non-condensing
Storage Temperature-4°F to 158°F (-20°C to 70°C)
Operating Temperature32°F to 113°F (0°C to 45°C)
Product Details
Audio
Output1 x balanced stereo audio outputs: 5-pin phoenix connector
Control
Control MethodRS-232, front panel buttons, contact closures
General
ApprovalsCE, FCC
Physical
Dimensions6.46"H x 8.66"W x 0.83"D (16.4 x 22 x 2.1 cm)
Rack Space Required1/2U height
Weight1.8 lb (0.82 kg)
Power
Electrical Fast Transient/BurstData communication cord: 1 kVPower cord : 2 kV
ESD ProtectionHuman-body Model: ±8kV(Air-gap discharge)±4kV(Contact discharge)
Power Consumption22 Watts, maximum
Power SupplyDC12V/3 Amp
Surge ProtectionVoltage: ±1 kV (ten times respectively for the positive and negative voltage)
Video
Deep Color1080p.48bit4K:24bit
Input2 x HDMI IN1 x DisplayPort IN1 x VGA IN1 x Stereo audio (embedded with VGA inputs)
Input DDC Signal5V p-p
Input ResolutionVESA:640 x 480at60Hz800 x 600at60Hz1024 x 768at60Hz, 1280 x 768at60Hz1280 x 800at60Hz1280 x 960at60Hz1280 x 1024at60Hz1360 x 768at60Hz1366 x 768at60Hz1440 x 900at60Hz1600 x 900at60Hz1600 x 1200at60Hz1680 x 1050at60Hz1920 x 1200at60HzHDTV: 720 x 480at60Hz720 x 576at50Hz1280 x 720at50/60Hz1920 x 1080at50/60Hz3840 x 2160at30HzMNOTE: HDMI/DP input up to 4Kat30Hz, VGA input up to 1920x1200at60Hz
Input Signal TypeHDMI 1.4
Input Video Level0.5-1.2 V p-p
Maximum Pixel Clock297 MHz
Output1 x HDMI OUT1 x HDBaseT OUT1 x Stereo audio
Output Resolution SupportVESA:640 x 480at60Hz800 x 600at60Hz1024 x 768at60Hz1280 x 768at60Hz1280 x 800at60Hz1280 x 960at60Hz1280 x 1024at60Hz1360 x 768at60Hz1366 x 768at60Hz1440 x 900at60Hz1600 x 900at60Hz1600 x 1200at60Hz1680 x 1050at60Hz1920 x 1200at60HzHDTV:720 x 480at60Hz720 x 576at50Hz1280 x 720at50/60Hz1920 x 1080at50/60Hz3840 x 2160at30Hz
Output Signal TypeHDMI 1.4, HDBaseT
Video Impedance100 Ω
Environmental
Humidity10% to 90%, non-condensing
Storage Temperature-4°F to 158°F (-20°C to 70°C)
Operating Temperature32°F to 113°F (0°C to 45°C)
