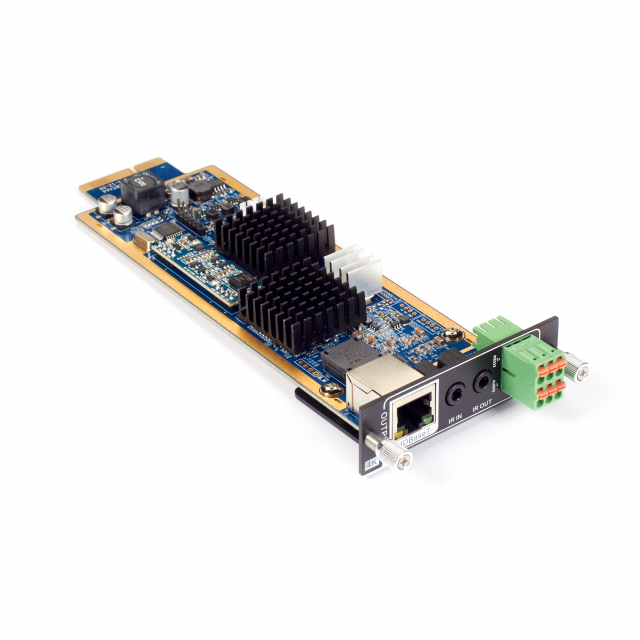

BlackBox AVS-HDB-4KO Modular Matrix Switcher Audio Output Card

Black Box, AVS-HDB-4KO, Modular Matrix Switcher Video Output Card HDBaseT 4K Audio

Features:

• Max resolution: 4K x 2K at 60 Hz
• Adaptive HDCP input and supports HDCP 2.2, the output signal supports HDCP 1.4
• Work with HDBT transmitter/receiver to attain long-distance transmission (up to 229 feet [70 meters] via qualified CAT6 cable for 1080P or 131 feet [40 meters] for 4K signal)
• Real-time work status indicators: yellow LED blinks once powered on; green LED lights when the port is connected to HDBT devices
• HDBT port supports PoE
• Input audio source selectable via command or GUI, including HDMI embedded audio (default), and external analog audio
• The default output resolution is 4K x 2K at 30 Hz and it can be adjusted via commands or GUI, supports 4K x 2K at 60 Hz, 1024 x 768 at 60 Hz, 1920 x 1080p at 60 Hz, 1280 x 720 at 60 Hz
• Support bi-directional RS232 control
• Support bi-directional IR control, compatible with 5V/12V IR receiver (default: 5V)
• Support EDID Management: default EDID is 4K x 2K at 30 Hz, and DDC communication
