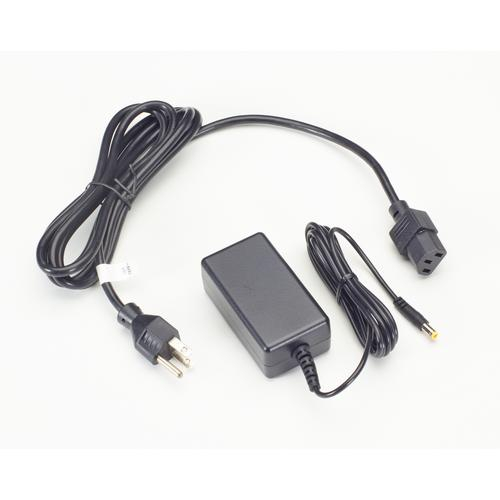

BlackBox, ACX300-PS4, Spare Power Supply for ACX300-RMK, Up to 4-Devices

Includes:

This product works with:

Replacement power supply for the ServSwitch DVI/HDMI + USB Extender Kits (ACX300-RMK).
Can power up to (4) ServSwitch CATx or Fiber DVI/HDMI + USB extender kit units (ACX300, ACX310F, or ACX310FIA).

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Approvals	CE, UL
Connectors	Output: 2.1 mm barrel; Input: IEC320, C14
Dimensions	3.4"H x 2"W x 1.3"D (8.7 x 4.7 x 3.2 cm)
Power	Source: External in-line power supply; Input Voltage: 100–240 VAC, 50/60 Hz; Input Current: 1 Amp, maximum; Output Voltage: 12 VDC; Output Current: 2.5 Amps, maximum; Consumption: 30 Watts; Heat Dissipation: 12 VDC x 2.5 Amps, BTU/h MAX (Voltage x Nominal Current) 3.41 = BTU/h
Weight	0.3 lb (0.1 kg)

Approvals	CE, UL
Connectors	Output: 2.1 mm barrel; Input: IEC320, C14
Dimensions	3.4"H x 2"W x 1.3"D (8.7 x 4.7 x 3.2 cm)
Power	Source: External in-line power supply; Input Voltage: 100–240 VAC, 50/60 Hz; Input Current: 1 Amp, maximum; Output Voltage: 12 VDC; Output Current: 2.5 Amps, maximum; Consumption: 30 Watts; Heat Dissipation: 12 VDC x 2.5 Amps, BTU/h MAX (Voltage x Nominal Current) 3.41 = BTU/h
Weight	0.3 lb (0.1 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
