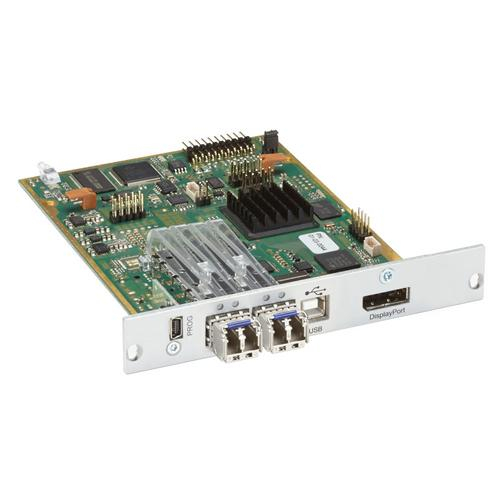

BlackBox ACX2MT-DPHS-2S DKM KVM Transmitter Card

  • Brand BlackBox
  • Part # ACX2MT-DPHS-2S
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

BlackBox, ACX2MT-DPHS-2S, DKM KVM Transmitter Card, DisplayPort 1.1, H-Speed Fiber

Features:

  • Fiber transmitter card for DKM FX Extender Modular Housings.
  • Supports 4K resolutions up to 4096 x 2160 at 30Hz, 3820 x 2160 at 30Hz, 2560 x 2048 at 60 Hz, and 1920 x 1080 at 60 Hz.
  • Compatible with other endpoints, such as HDMI and DVI cards.
  • Support speeds up to 2.5Gbps.
  • Supports integrated DisplayPort digital audio.
  • Audio format PCM can be transferred with a sample rate up to 96 kHz via the DisplayPort interface.
  • Supports up to two (2) daughter cards

This product works with:

  • KVM Receiver, DisplayPort 4K30, USB HID, 2x CATx, Mod Ext Card
  • KVM Receiver, DisplayPort 4K30, USB HID, 2x HS Fiber, Mod Ext Card
  • KVM Transmitter, DisplayPort 4K30, USB HID, 2X CATx, Mod Ext Card
  • 16-Port KVM Matrix Switch SM HighSpeed Fiber Redundant PWR
  • 80-Port KVM Matrix Switch SM HighSpeed Fiber Redundant PWR
  • DKM HD Video and Peripheral Matrix Switch Modular Housing, 2-Slot Chassis with Power Supply
  • Modular KVM Extender Housing, 21 Slot w/Power Supply,Redun opt
  • DKM HD Video and Peripheral Matrix Switch Modular Housing, 2-Slot Chassis with Power Supply and Redundancy Option
  • DKM HD Video and Peripheral Matrix Switch Modular Housing, 4-Slot Chassis with Power Supply
  • DKM HD Video and Peripheral Matrix Switch Modular Housing, 4-Slot Chassis with Power Supply and Redundancy Option

NOTE(s):These high-speed cards (ACX2MT-DPHS-2S, ACX2MR-DPHS-2S) support 2.5Gbps and will reduce the latency that may be noticed when using the non-high-speed cards.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Optional Accessories
Reviews
ApprovalsCE, FCC, RoHS
Connectors(2) LC interconnect, (1) DisplayPort F, (1) USB Type B F / (2) USB Type A F, (1) mini USB
Dimensions0.7" H x 5"W x 5.75" D (1.8 x 12.7 x 14.6 cm)
Distance2,800 feet (10,000m) using single-mode 9µm fiber cable 3,280 feet (1000m) using multimode 50µm (OM3) cable 1,300 feet (400m) using multimode 50µm cable 650 feet (200m) using multimode 62.5µm cable
EnvironmentalOperating humidity: 80%, non condensing
InterfaceDisplayPort 1.1 video, USB HID (keyboard and mouse)
IP-EnabledNo
Leads SupportedDisplayPort 1.1 video, USB HID (keyboard and mouse)
Operating System SupportAll Windows, Mac, SUN, Linux/UNIX
OSD SupportYes, when a DKM FX switch is installed; use hotkeys
PowerTaken from frame, ACXMODHXX chassis; Output: Uses 5 VDC, consumes 800 mA; MTBF: 400,000
Storage temperature-13 to +140° (-25 to +60° C);
Weight0.6 lb (0.3 kg)
Product Details
ApprovalsCE, FCC, RoHS
Connectors(2) LC interconnect, (1) DisplayPort F, (1) USB Type B F / (2) USB Type A F, (1) mini USB
Dimensions0.7" H x 5"W x 5.75" D (1.8 x 12.7 x 14.6 cm)
Distance2,800 feet (10,000m) using single-mode 9µm fiber cable 3,280 feet (1000m) using multimode 50µm (OM3) cable 1,300 feet (400m) using multimode 50µm cable 650 feet (200m) using multimode 62.5µm cable
EnvironmentalOperating humidity: 80%, non condensing
InterfaceDisplayPort 1.1 video, USB HID (keyboard and mouse)
IP-EnabledNo
Leads SupportedDisplayPort 1.1 video, USB HID (keyboard and mouse)
Operating System SupportAll Windows, Mac, SUN, Linux/UNIX
OSD SupportYes, when a DKM FX switch is installed; use hotkeys
PowerTaken from frame, ACXMODHXX chassis; Output: Uses 5 VDC, consumes 800 mA; MTBF: 400,000
Storage temperature-13 to +140° (-25 to +60° C);
Weight0.6 lb (0.3 kg)
