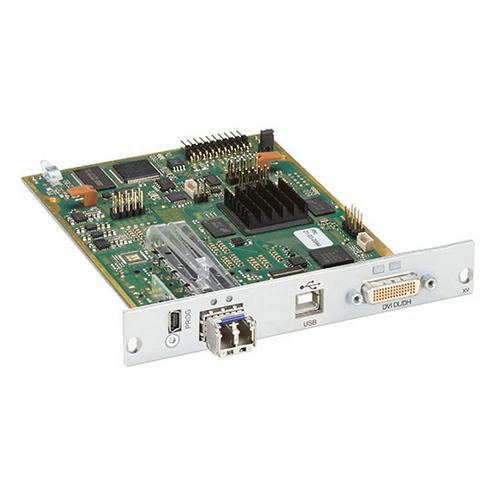

BlackBox ACX2MT-DLHS-SM DKM FX Transmitter Card

DVI-D Adapter: Dual-Head
  • Brand BlackBox
  • Part # ACX2MT-DLHS-SM
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

DVI-D Adapter:
DVI-D Adapter: Dual-Head

Black Box, ACX2MT-DLHS-SM, DKM FX High-Speed Transmitter Card, Fiber, 1-Slot

Features:

  • Transmitter card for DKM FX Extender Modular Housings.
  • Supports one DVI dual-link connection with resolutions up to 2560 x 1600.
  • Connectors include: (1) LC, (1) DMS-59 (DVI-D Dual Link Adapter), (1) USB Type B, and (1) mini USB.

Modular KVM extender TX interface card that supports Dual Link DVI-D and USB HID for HS Fiber connectivity. Use with the DKM or DKM FX chassis for modular switching or as a point-to-point KVM extender. LC SM Fiber connections Dual-Link Resolutions up to 2560x1600 Occupies (1) slot of housing space. Compatible with the DKM FX Compact Extender.

This card works with:

  • DKM FX Modular Extension Housings with 2, 4, 6, or 21 slots (ACXMODH2, ACXMODH4, ACXMODH6, and ACXMODH21 series)
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Resources
Reviews
ApprovalsCE, FCC, RoHS
Connectors(1) LC, (1) DMS-59 (DVI-D Dual Link Adapter), (1) USB Type B female, (1) mini USB
Dimensions0.7" H x 5"W x 5.75" D (1.8 x 12.7 x 14.6 cm)
Distance2,800 feet (10,000 m) using single-mode 9µm fiber cable
InterfaceDual-link DVI-D video, USB HID (keyboard and mouse)
IP-EnabledNo
Leads SupportedDual-link DVI-D video, USB HID (keyboard and mouse)
Operating Humidity80%, non condensing
Operating System SupportAll Windows, Mac, SUN, Linux/UNIX
Operating Temperature+41 to +113° F (+5 to +45° C)
OSD SupportYes, when a DKM FX switch is installed; use hotkeys
PowerFrom ACXMOD chassis; Output: Uses 5 VDC, consumes 800 mA
Weight0.25 lb (0.11 kg)
Product Details
ApprovalsCE, FCC, RoHS
Connectors(1) LC, (1) DMS-59 (DVI-D Dual Link Adapter), (1) USB Type B female, (1) mini USB
Dimensions0.7" H x 5"W x 5.75" D (1.8 x 12.7 x 14.6 cm)
Distance2,800 feet (10,000 m) using single-mode 9µm fiber cable
InterfaceDual-link DVI-D video, USB HID (keyboard and mouse)
IP-EnabledNo
Leads SupportedDual-link DVI-D video, USB HID (keyboard and mouse)
Operating Humidity80%, non condensing
Operating System SupportAll Windows, Mac, SUN, Linux/UNIX
Operating Temperature+41 to +113° F (+5 to +45° C)
OSD SupportYes, when a DKM FX switch is installed; use hotkeys
PowerFrom ACXMOD chassis; Output: Uses 5 VDC, consumes 800 mA
Weight0.25 lb (0.11 kg)
