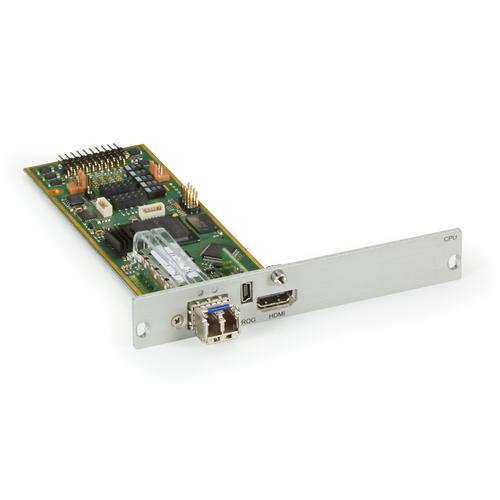

BlackBox, ACX1MT-HDO-SM, HDMI Transmitter Expansion Card gor DKM KVM Extender

Features:

Fiber transmitter card for DKM FX Extender Modular Housings.
Supports resolutions up to 2560 x 1600.
For use with the DKM FX Modular Housing Chassis.
Please note: This card does not support KVM switching or USB peripherals. It is only for HDMI signal extension.

The DKM FX HD Video and Peripheral Matrix Switching System is comprised of modular housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.

This product works with:

Modular KVM Extender Housing, 21 Slot w/Power Supply,Redun opt

NOTE(s): If you are using multimode fiber cable with the single-mode transmitter and receiver modules, you normally can double the maximum acceptable cable length. This product works with: DKM HD Video and Peripheral Matrix Switch Modular Housing chassis (ACXMODH series). 19" Rackmount Chassis (ACXMODH21R) NOTE: Transmitters and receivers can be copper or fiber based.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Approvals	CE, FCC, RoHS, WEEE
Cascadable	No
Connectors	(1) LC interconnect; (1) HDMI F; (1) mini USB
DDC Support	Use monitor DDC from RX, 4:3, 16:9
Dimensions	0.7"H x 5"W x 5.75"D (1.8 x 12.7 x 14.6 cm)
Distance	Between TX and RX: 32,800-ft. (10,000-m) using single-mode fiber cable 3,280-ft. (1000-m) using OM3 50-micron multimode fiber cable 1,300-ft. (400-m) using 50-micron multimode fiber cable 650-ft. (200-m) 62.5-micron multimode fiber cable
Encryption	No
Environmental	Operating Humidity: 80%, non condensing
Hotkey Support	Yes, when DKM switch is connected
Interface	HDMI video
IP-Enabled	No
Leads Supported	HDMI video
Operating System Support	All Windows, MAC, SUN, Linux/UNIX
Operating Temperature	+41 to +113°F (+5 to +45°C);
OSD Support	Yes, use hotkeys to open it when the DKM is also installed
PC Selection	Point-to-point: no interface, always connected; DKM KVM Switch: Hotkeys
Power	Source: taken from ACXMODHXX chassis; Output: Uses 5 VDC, consumes 800 mA; MTBF: 400,000 hours
Weight	0.6 lb. (0.3 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Approvals	CE, FCC, RoHS, WEEE
Cascadable	No
Connectors	(1) LC interconnect; (1) HDMI F; (1) mini USB
DDC Support	Use monitor DDC from RX, 4:3, 16:9
Dimensions	0.7"H x 5"W x 5.75"D (1.8 x 12.7 x 14.6 cm)
Distance	Between TX and RX: 32,800-ft. (10,000-m) using single-mode fiber cable 3,280-ft. (1000-m) using OM3 50-micron multimode fiber cable 1,300-ft. (400-m) using 50-micron multimode fiber cable 650-ft. (200-m) 62.5-micron multimode fiber cable
Encryption	No
Environmental	Operating Humidity: 80%, non condensing
Hotkey Support	Yes, when DKM switch is connected
Interface	HDMI video
IP-Enabled	No
Leads Supported	HDMI video
Operating System Support	All Windows, MAC, SUN, Linux/UNIX
Operating Temperature	+41 to +113°F (+5 to +45°C);
OSD Support	Yes, use hotkeys to open it when the DKM is also installed
PC Selection	Point-to-point: no interface, always connected; DKM KVM Switch: Hotkeys
Power	Source: taken from ACXMODHXX chassis; Output: Uses 5 VDC, consumes 800 mA; MTBF: 400,000 hours
Weight	0.6 lb. (0.3 kg)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
