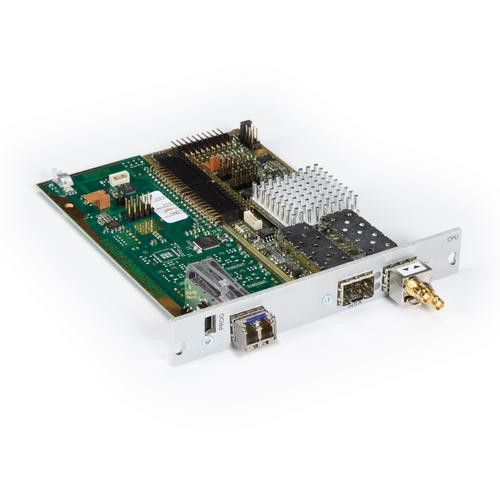

Buy BlackBox ACX1MR-SDI-SM, Receiver Card - Fiber

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Features

SDI receiver module for DKM Modular Housing chassis.
Converts from SDI to DVI, HDMI and DisplayPort and vice versa.
Works over single-mode fiber.
Supports SDI, HD-SDI and 3GSDI resolutions (720p at 50/60, 1080i at 50/60, 1080p at 50/60).
Includes an integrated scaler so the appropriate resolution is displayed.
Features integrated interlacing and de-interlacing.
Provides SDI audio embedding and de-embedding.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Connectors	(1) LC interconnect; (2) BNC (one input, one output); (1) mini USB
Dimensions	0.7"H x 5"W x 5.75"H x (1.8 x 12.7 x 14.6 cm)
Distance	32,800 feet (10,000 m) using single-mode fiber cable
Interface	Mini-BNC
IP-Enabled	No
Leads Supported	SDI
Operating Temperature	0 to +45° C (32 to 113° F)
OSD Support	No
PC Selection	Point to point: no interface, always connected; DKM KVM switch: Hotkeys via other RX units, macro or API
Power	From chassis
Resolution	SDI: 720p50, 1080p50, 720p60, 1080p60, 1080i50
Storage temperature	-25 to +60° C (-13 to 140° F)
Weight	0.6 lbs (0.3 kg)

Connectors	(1) LC interconnect; (2) BNC (one input, one output); (1) mini USB
Dimensions	0.7"H x 5"W x 5.75"H x (1.8 x 12.7 x 14.6 cm)
Distance	32,800 feet (10,000 m) using single-mode fiber cable
Interface	Mini-BNC
IP-Enabled	No
Leads Supported	SDI
Operating Temperature	0 to +45° C (32 to 113° F)
OSD Support	No
PC Selection	Point to point: no interface, always connected; DKM KVM switch: Hotkeys via other RX units, macro or API
Power	From chassis
Resolution	SDI: 720p50, 1080p50, 720p60, 1080p60, 1080i50
Storage temperature	-25 to +60° C (-13 to 140° F)
Weight	0.6 lbs (0.3 kg)
