BlackBox ACU5700A LRX KVM Extender Kit, Single Access, CATx

  • Brand BlackBox
  • Part # ACU5700A
  • Model # LRX
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
Share:

ACU5700A, LRX KVM Extender Kit

Includes:

  • (1) Transmitter
  • (1) Receiver
  • (2) 12 VDC, 1.5 Amp desktop power supply with U.S. power cords
  • (1) USB Type A to Type B cable
  • (1) DVI-D male/male cable
  • (1) set of rubber feet
  • Safety information

Features:

  • Extension distance is 490 feet (150 m) to a single-screen; maximum resolution is 1920 x 1080.
  • Supports USB 2.0 for keyboard and mouse, as well as for storage devices, touch screen, and web cameras.
  • Transmits pixel-perfect digital video with no compression and enables real-time control of USB devices.

The DKM FX Modular Extender System is comprised of modular housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM FX extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.These new DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. For consultation on your DKM FX setup, call our FREE Tech Support.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Resources
Reviews
ApprovalsCE, FCC (Part 15, Class A), RoHS, TUV, UL

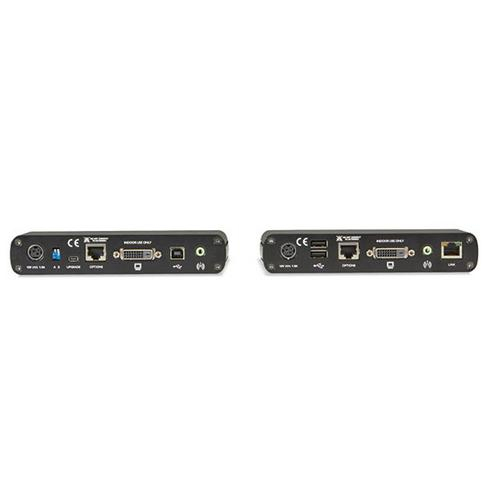

ConnectorsTransmitter: (1) DVI-D female, (1) USB Type B female, (1) 3.5mm audio, (1) RJ45 Interconnect, (1) RJ45 Options port, (1) Mini USB Type B, (1) 3-position locking power connector Receiver: (1) DVI-D female, (4) USB Type A female, (1) 3.5mm audio, (1) RJ45 Interconnect, (1) RJ45 Options port, (1) Mini USB Type B (upgrade), (1) 3-position locking power connector
DDC SupportReal-time
Dimensions1.22"H x 6.65"W x 4.8"D (3 x 16.8 x 12.2 cm)
DistanceBetween transmitter and Receiver: 490 feet (150 m)
EnvironmentalOperating Humidity: 80% non condensing

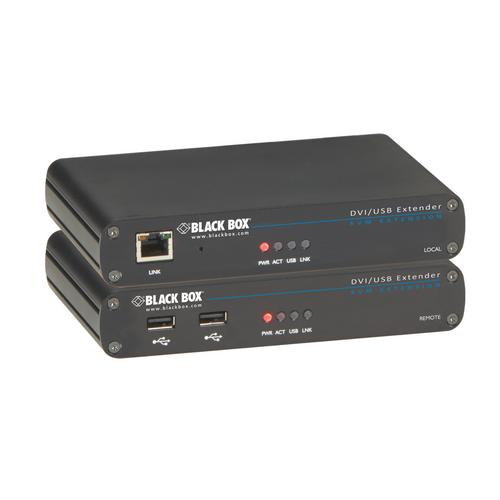

LED IndicatorsReceiver: (2) RJ45 link LEDs, (1) PWR LED, (1) ACT LED, (1) USB LED, (1) LNK LED
Operating Temperature32° to 104° F (0º to 40° C);
PowerSource: external in-line power supply; Input: 100-240 VAC, 50/60 Hz, 0.7 Amps maximum; Output: 12 VDC, 1.5 Amps maximum; Consumption: 18 Watts
Weight1.3 lb (0.59 kg)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
ApprovalsCE, FCC (Part 15, Class A), RoHS, TUV, UL
ConnectorsTransmitter: (1) DVI-D female, (1) USB Type B female, (1) 3.5mm audio, (1) RJ45 Interconnect, (1) RJ45 Options port, (1) Mini USB Type B, (1) 3-position locking power connector Receiver: (1) DVI-D female, (4) USB Type A female, (1) 3.5mm audio, (1) RJ45 Interconnect, (1) RJ45 Options port, (1) Mini USB Type B (upgrade), (1) 3-position locking power connector
DDC SupportReal-time
Dimensions1.22"H x 6.65"W x 4.8"D (3 x 16.8 x 12.2 cm)
DistanceBetween transmitter and Receiver: 490 feet (150 m)
EnvironmentalOperating Humidity: 80% non condensing
LED IndicatorsReceiver: (2) RJ45 link LEDs, (1) PWR LED, (1) ACT LED, (1) USB LED, (1) LNK LED
Operating Temperature32° to 104° F (0º to 40° C);
PowerSource: external in-line power supply; Input: 100-240 VAC, 50/60 Hz, 0.7 Amps maximum; Output: 12 VDC, 1.5 Amps maximum; Consumption: 18 Watts
Weight1.3 lb (0.59 kg)
