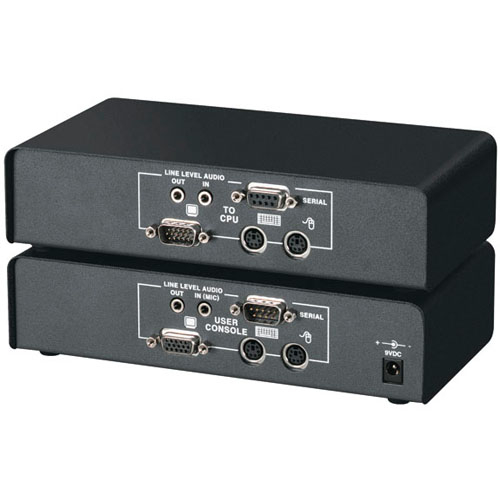

Buy BlackBox ACU1022A, ServSwitch Brand CAT5 KVM Extender

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

ServSwitch Brand CAT5 KVM Extender with Serial Extension and Stereo Audio Support, Single-Access Kit

Quick Facts

Place your keyboard, monitor, and mouse up to 1000 feet (304.8 m) from a CPU or ServSwitch.
You also can send serial port data up to 1000 feet (304.8 m).
Compatible with printers, touch screens, and more!

Further Details

To convert your USB-style keyboard and mouse signal to PS/2, order the USB to PS/2 Converter (KVUSB).
Rackmountable.
Fully adjustable video equalization.
Surge protection defends CAT5 side against spikes and surges!
Listen to near-digital-quality audio from the CPU via speakers attached to the remote unit (single access).
Dual-access model is also available.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Clamping Voltage	15 volts
Compatibility	Keyboard: PC/AT, PS/2; Video: VGA, Super VGA, XGA®; Mouse: PS/2 mouse only (user)
Resolution (Maximum)	1600 x 1280: 200 ft. (60.9 m); 1280 x 1024: 300 ft. (91.4 m); 1024 x 768: 1000 ft. (304.8 m)
CE Approval	Yes
Connectors	Keyboard and mouse: (2) 6-pin mini DIN F; Video: HD15; Interconnect: (1) RJ-45; Serial extension: (1) DB9; Audio: (1) 3.5-mm barrel jack
Power	Local unit: From the PC; Remote unit: 100-240 VAC, 50-60 Hz, external, autosensing, with IEC 320 connector
Size	1.4"H x 7.8"W x 3.9"D (3.6 x 19.8 x 9.9 cm)
Weight	1.1 lb. (0.5 kg)
These products work with	CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, EYN860A) 19" Rackmount Kit for ServSwitch Brand CAT5 KVM Extenders (RMK19U-R2) CAT5 Modular Plugs (25/Bag), Solid-Conductor, Unshielded (FM732)

Clamping Voltage	15 volts
Compatibility	Keyboard: PC/AT, PS/2; Video: VGA, Super VGA, XGA®; Mouse: PS/2 mouse only (user)
Resolution (Maximum)	1600 x 1280: 200 ft. (60.9 m); 1280 x 1024: 300 ft. (91.4 m); 1024 x 768: 1000 ft. (304.8 m)
CE Approval	Yes
Connectors	Keyboard and mouse: (2) 6-pin mini DIN F; Video: HD15; Interconnect: (1) RJ-45; Serial extension: (1) DB9; Audio: (1) 3.5-mm barrel jack
Power	Local unit: From the PC; Remote unit: 100-240 VAC, 50-60 Hz, external, autosensing, with IEC 320 connector
Size	1.4"H x 7.8"W x 3.9"D (3.6 x 19.8 x 9.9 cm)
Weight	1.1 lb. (0.5 kg)
These products work with	CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, EYN860A) 19" Rackmount Kit for ServSwitch Brand CAT5 KVM Extenders (RMK19U-R2) CAT5 Modular Plugs (25/Bag), Solid-Conductor, Unshielded (FM732)

Note: Please read description carefully. Do not base your order on the picture presented.
