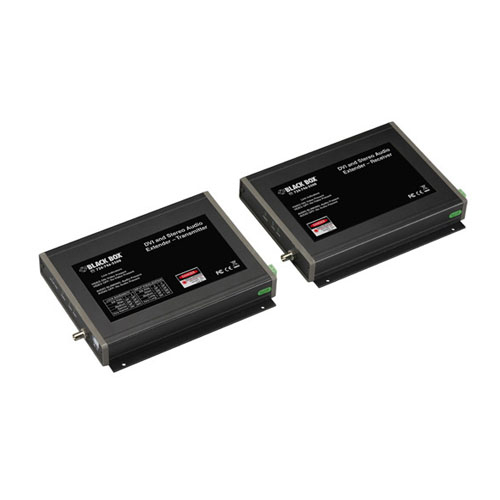

DVI & Stereo Audio Extender Kit for Multimode Fiber

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Audio Channels	(2) unbalanced
Audio Crosstalk	100 dB (1 kHz)
Audio Frequency Response	+0/-0.5 dB, 20 Hz-20 kHz
Audio Impedance	Input: > 24K ohms; Output: < 1 ohm
Audio Level (Maximum)	+10 dBu
Audio Signal-to-Noise Ratio (SNR)	100 dB (A-weighted)
Audio to Video Differential Delay (Skew)	300 µsec
CE Approval	Yes
Distance (Maximum)	Using 850-nm wavelength band with 0-8-dB operating loss budget: Over 50-µm multimode fiber: 750 m (2460.6 ft.); Over 62.5-µm multimode fiber: 350 m (1148.2 ft.)
Video Channels	(1) single-link DVI-D up to 1920 x 1200
Video Pixel Clock Range	25-165 MHz, continuous
Video Processing	24 bits, no compression or scaling
Video Scanning Systems Supported	Progressive or interlaced
Video Color Space Format Supported	RGB or YPrPb
Video Cable Lengths (Maximum)	Input: 45 ft. (13.7 m); Output: 16 ft. (4.8 m)
Operating Wavelength	850-nm band (Coarse Wavelength Division Multiplexing)
Indicators	Both units: (4) LEDs: Power, Video, Audio, Alarm
Connectors	Transmitter: DVI input: (1) DVI-D/DVI-I single-link; DVI input loop-through: (1) DVI-D/DVI-I single-link (supports EDID); Fiber optic interconnect: (1) ST®; Audio input: (1) stereo jack; Receiver: DVI output: (2) DVI-D/DVI-I single-link; Fiber optic interconnect: (1) ST; Audio output: (1) stereo jack
RoHS	Yes
Power	9-24 V, AC or DC, 10 W
Size	Each unit: 1.2"H x 8"W x 6.5"D (0.5 x 20.3 x 16.5 cm)
Weight	Each unit: 1 lb. (0.5 kg)

Audio Channels	(2) unbalanced
Audio Crosstalk	100 dB (1 kHz)
Audio Frequency Response	+0/-0.5 dB, 20 Hz-20 kHz
Audio Impedance	Input: > 24K ohms; Output: < 1 ohm
Audio Level (Maximum)	+10 dBu
Audio Signal-to-Noise Ratio (SNR)	100 dB (A-weighted)
Audio to Video Differential Delay (Skew)	300 µsec
CE Approval	Yes
Distance (Maximum)	Using 850-nm wavelength band with 0-8-dB operating loss budget: Over 50-µm multimode fiber: 750 m (2460.6 ft.); Over 62.5-µm multimode fiber: 350 m (1148.2 ft.)
Video Channels	(1) single-link DVI-D up to 1920 x 1200
Video Pixel Clock Range	25-165 MHz, continuous
Video Processing	24 bits, no compression or scaling
Video Scanning Systems Supported	Progressive or interlaced
Video Color Space Format Supported	RGB or YPrPb
Video Cable Lengths (Maximum)	Input: 45 ft. (13.7 m); Output: 16 ft. (4.8 m)
Operating Wavelength	850-nm band (Coarse Wavelength Division Multiplexing)
Indicators	Both units: (4) LEDs: Power, Video, Audio, Alarm
Connectors	Transmitter: DVI input: (1) DVI-D/DVI-I single-link; DVI input loop-through: (1) DVI-D/DVI-I single-link (supports EDID); Fiber optic interconnect: (1) ST®; Audio input: (1) stereo jack; Receiver: DVI output: (2) DVI-D/DVI-I single-link; Fiber optic interconnect: (1) ST; Audio output: (1) stereo jack
RoHS	Yes
Power	9-24 V, AC or DC, 10 W
Size	Each unit: 1.2"H x 8"W x 6.5"D (0.5 x 20.3 x 16.5 cm)
Weight	Each unit: 1 lb. (0.5 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
