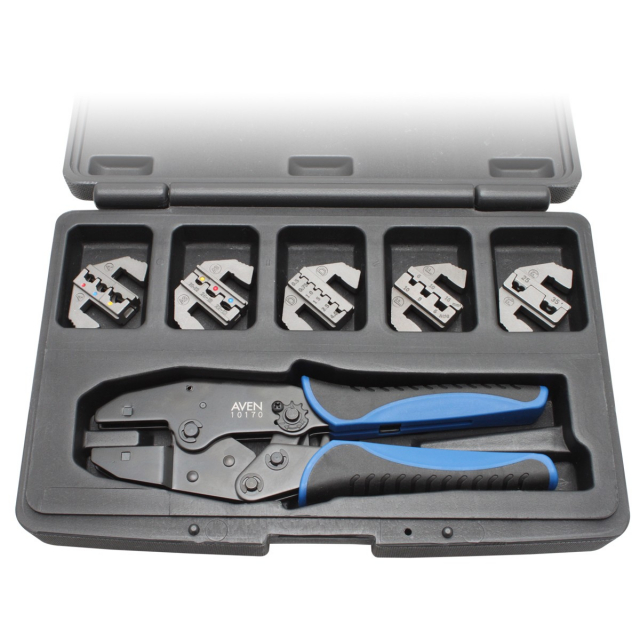

Aven 10170-KIT Crimping Tool

10170-KIT Include Only:

• Crimping Tool Frame
• Crimping Die D | For Cord End Terminals | 22/20/18/16/14/12 AWG
• Crimping Die F | AWG: 10/8/6 | DIN: 6/10/16 MM2
• Crimping Die F1 | For Insulated Cord Terminals 4 /2
• Crimping Die A3 | For Miniature Insulated Terminals 26-22/24-18/22-16 AWG
• Crimping Die A | For Insulated End Terminals 22-18/16-14/12-10 AWG
• Hard plastic case for easy travel and storage

Aven, 10170-KIT, Crimping Tool

This high-precision wire ferrule crimper features a built-in ratchet that applies correct pressure to ensure a complete crimp every time and the safety release function allows you to stop a faulty crimp before the crimping cycle is complete. The precisely milled, hardened steel dies have individual crimping slots. The dies can easily be changed by sliding them out of the frame - no tools required. Aven offers a variety of replacement dies to accommodate a wide range of wire gauges. The durable rubberized grips make this tool comfortable and easy to use.

Features:

• The tool has a smooth ratcheting mechanism that creates uniform and secure crimps
• Ferrules are crimped by squeezing the handle through the complete cycle until the handle releases automatically.
• Precise ratcheting mechanism will ensure the same amount of crimping force for all crimps.
• The tool has adjustment for crimping force
• Patented design allows for quick die change without any tools
