Yamato, WB-301UFR, Water Purifier Remote Dispense Configuration with Ultrafiltration Module, 120V/60Hz
Features:
- Made in USA
- 2.5 LPM of 18 MΩ Type 1 reagent water on demand
- Large capacity, low-cost consumable cartridges
- Low Cost of Ownership
- Intuitive, user-friendly touch screen interface
- Replacement cartridges are fresh and made in the USA. 1-year shelf life.
- Compact design
- Real-time quality monitoring with leak detection
- Quick change, cartridge - no tools needed
- Premium quality ion exchange resin
Applications:
- Life Science
- Cell Culture
- Microbiology
WB Series Configuration:
- Conditioning cartridge
- Polishing cartridge
- Ultrafiltration
- 0.2 micron filter

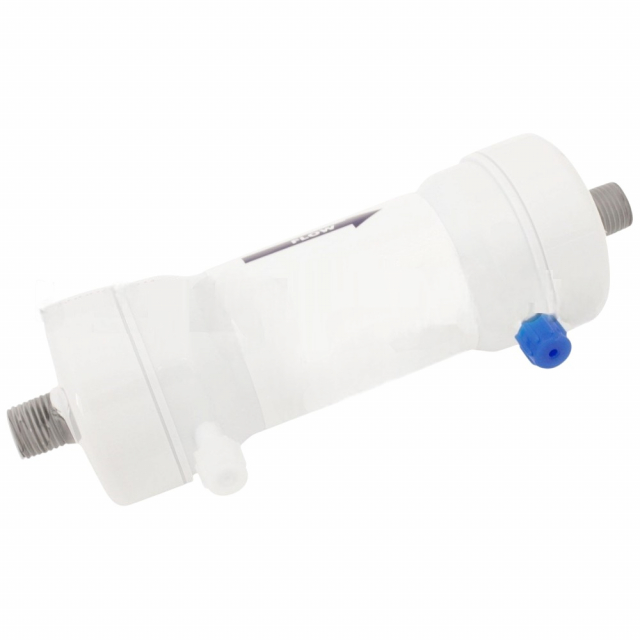

The Ultrafiltration (UF) module is designed to remove bacteria, endotoxin, and RNase/DNase enzymes. The filter is part of the recirculation loop and is installed in the system before shipment. The UF is located behind the left side panel, mounted in the vertical position.
Water is purified using a stage purification process, which includes high-purity ion exchange resins to remove dissolved minerals and internal recirculation to maintain purity. As water exits the system, a final filter removes particulates and bacteria to reach Type I water specifications.
Solutions are sensitive to contaminants, so any imbalance in the mixture invalidates the results of your experiment. Impure water contains contaminants that pose risks. As a result, water should undergo a purification process to reach a certain level of purity. The lab water purification systems here at Yamato can help you produce ASTM Type I water, Type II water, and Type III water quality. Besides that, lab water purification systems can help you with the following applications:
Buffers and reagents
A buffer corrects the pH level of any solution. On the other hand, a reagent stimulates a reaction to detect the absence or presence of other substances. Both solutions are prepared by dissolving solid reagents in pure water that are free from any substances that affect the acidity or pH level of the solutions.
Since water is a major solvent involved in creating these solutions, a deionized water system for laboratories is necessary to produce water with high levels of purity. The Yamato Auto Pure WA300 series water purifiers can remove dissolved minerals through high-purity ion exchange resins to process high-quality pure water, which is ideal for preparing both solutions.
Cell Culture
Normal water contains compounds that affect cell culture which includes bacteria, endotoxin, orga-nic ions, and orga-nic compounds. These contaminants can cause chemical reactions, changes in pH levels, and disrupt or kill various cells.
Moreover, water is also used in producing buffers and rinsing bioreactors and other materials. Therefore, producing laboratory grade water is necessary. This is usually achieved using Yamato Auto Pure WB300 series water purifiers. These units are great in removing bacteria and particulates to reach type 1 water quality, the highest level of purity in water.
Reverse osmosis
In order to make Type 1 or Type 2 water, feed water quality is important. Reverse osmosis is used as pretreatment of raw water just before feeding it to water purifiers which can produce Type1 or Type 2 water.
Distillation
Traditional method of producing purified water is distillation, which is the process of separating liquid mixtures through condensation. Academia and certain applications require the heat treated distilled water. Yamato Auto Still series water purifiers can produce distilled water.
