Buy Yamato SDP-410, SDP Series Large Vacuum Oven, 127.4L, 220-240V

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Power Supply (V):: Power Supply (V): 220 - 240

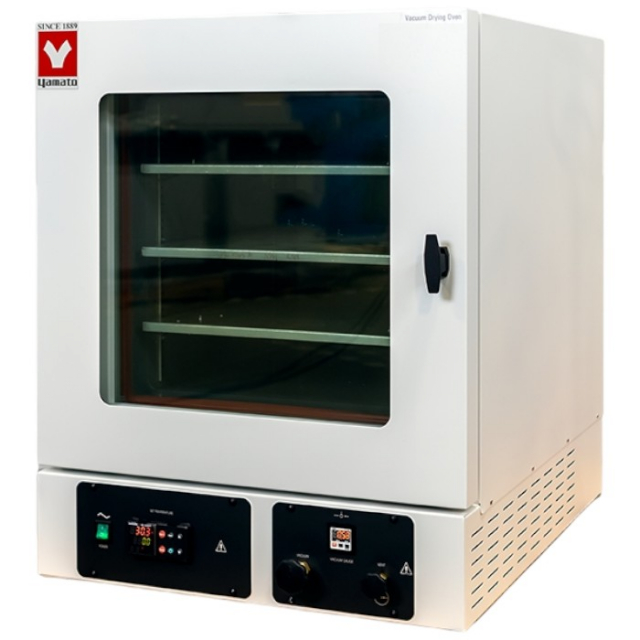

Yamato, SDP-410, SDP Series Large Vacuum Oven, Programmable, 127.4L, 220-240V

SDP-410 Includes Only:

Vacuum Oven
3 shelves
12 shelf clips
1 power cord
4 leveling feet

Features:

Programmable Watlow controller to perform multiple ramp and soak profiles
Digital vacuum gauge displaying the vacuum level of the chamber
Doors with positive latch handles and spring-loaded glass, facilitating a good vacuum seal
Tempered glass viewing window for safe, continuous monitoring of samples
Generous usable shelf area
Meets TUV safety requirements

Provides exceptional capabilities for fast and gentle drying of heat-sensitive materials.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Operating temperature range

Room temperature +10°C ~220°C

Operating vacuum range

40-3.0 ~ -29.9 inHg (-10 ~ 101 kPa)

Vacuum display range

0.0 ~ -29.9 inHg (5 to -101 kPa)

Controls

EZ-ZONE Watlow

Access port

KF25

Temperature uniformity - midrange

± 6.0% of setpoint

Temperature stability

at 80°C: ± 0.2°C
at 150°C: ± 0.25°C
at 220°C: ± 0.3°C

Heat-up times

at 80°C: 70 mins.
(from RT of 20°C for SDP300/400) at 150°C: 120 mins.

Cool down times

at 80°C: 161 mins.
(time to cool down to 50°C) at 150°C: 318 mins.
at 220°C: 420 mins.

Controller

Digital

Display resolution

0.1°C

Interior material

300 SST

Exterior material

Painted cold-rolled steel

Standard chamber gasket

Silicone

Internal dimensions

W457 x D610 x H457 mm / 18 x 24 x 18 in

External dimensions WxDxH

W686 x D895 x H833 mm / 27.0 x 35.2 x 32.8 in

Internal capacity

127.4L

Shelf dimensions (WxD)

287 x 483 mm (11.3" x 19")

Shelf capacity by weight per shelf

15.8 kg

Maximum total load

47.6 kg.

Shelf rest step number

6 steps

Power source 50/60 Hz

AC220 - 240V 7A

Weight

~144kg

Product Details

Operating temperature range

Room temperature +10°C ~220°C

Operating vacuum range

40-3.0 ~ -29.9 inHg (-10 ~ 101 kPa)

Vacuum display range

0.0 ~ -29.9 inHg (5 to -101 kPa)

Controls

EZ-ZONE Watlow

Access port

KF25

Temperature uniformity - midrange

± 6.0% of setpoint

Temperature stability

at 80°C: ± 0.2°C
at 150°C: ± 0.25°C
at 220°C: ± 0.3°C

Heat-up times

at 80°C: 70 mins.
(from RT of 20°C for SDP300/400) at 150°C: 120 mins.

Cool down times

at 80°C: 161 mins.
(time to cool down to 50°C) at 150°C: 318 mins.
at 220°C: 420 mins.

Controller

Digital

Display resolution

0.1°C

Interior material

300 SST

Exterior material

Painted cold-rolled steel

Standard chamber gasket

Silicone

Internal dimensions

W457 x D610 x H457 mm / 18 x 24 x 18 in

External dimensions WxDxH

W686 x D895 x H833 mm / 27.0 x 35.2 x 32.8 in

Internal capacity

127.4L

Shelf dimensions (WxD)

287 x 483 mm (11.3" x 19")

Shelf capacity by weight per shelf

15.8 kg

Maximum total load

47.6 kg.

Shelf rest step number

6 steps

Power source 50/60 Hz

AC220 - 240V 7A

Weight

~144kg
