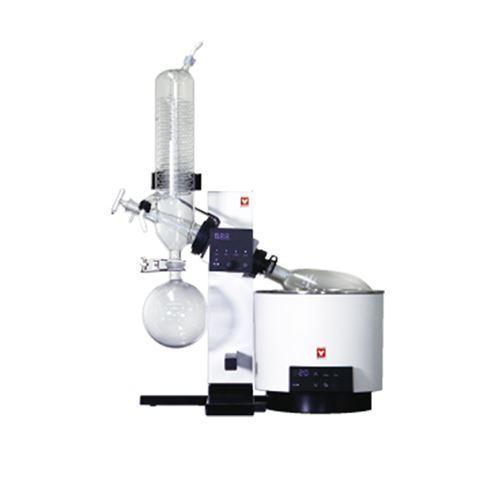

Yamato RE-202-BWA Rotary Evaporator, Glassware B, 115V

Glassware Set: Standard (Vertical)
  • Brand Yamato
  • Part # RE-202-BWA
  • Model # RE-202-AWA Complete Set
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Glassware Set:
Glassware Set: Standard (Vertical)

Yamato, RE-202-BWA, Rotary Evaporator, BM-302-A Water Bath (5l), Glassware B, 115V

RE-202-BWA Includes Only:

  • AC adapter (1)
  • Power cable (1)
  • Bath guide (1)
  • Rear cover (1)
  • Single-sided tape fastener roll (1)
  • Double-sided tape, fastener roll (1)
  • Condenser bracket (1)
  • Hex wrench (1)
  • Instruction manual (1)
  • Cooling condenser (type A/B)(1)
  • Rotary joint (1)
  • Evaporation flask (1)
  • Receiving flask (1)
  • Ball joint clamp (1)
  • Flask clip (1)
  • Vacuum seal (1)
  • Condenser insulation kit (1)
  • Flask removal tool

Features:

  • 5-315 rpm rotation speed range
  • Convenient height adjustment
  • Set inversion function
  • Uniquely designed glass condenser
  • Condenser is fastened tightly
  • Cables are stored neatly, simply and smartly
Report incorrect product information
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Notifications
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Technical Details

Reviews
Operating ambient temp. range5~35°C
Speed range5~315 rpm
Evaporation capacityUp to 23 ml/min
RPM displayDigital display / Encoder dial setting
Rotation modeForward/Reverse/Auto reverse
Spring-loaded jackManual balance (Max. height 200 mm, stepless regulation, one-touch lock)
Rotary motorDC brushless (simple servo)
Condenser retentionRetaining bracket for vertical condenser (condenser type B)
Safety functionsDC motor: Motor overload protection, overvoltage, low voltage, rotation speed sensor error
AC adapter: Short circuit in internal circuit, overcurrent protection, overvoltage protection
Cooling condenserDouble corrugated tube (cooling surface: 0.143 m2)
Suction Port: GL-14 (upper), Φ10 nozzle
Cooling port: GL14 (two places in lower part), two φ10 nozzles
Compatible receiving flask100-2000 ml
External dimensions (W x D x H)529 x 324 x 745
Overall dimensions (including bath) (W x D x H)554 x 365 x 745
Power rating100-115 VAC single phase 1A
Power cableApprox. 2.0 m with inlet plug
WeightApprox. 9.0 kg (including RE unit)
Product Details
Operating ambient temp. range5~35°C
Speed range5~315 rpm
Evaporation capacityUp to 23 ml/min
RPM displayDigital display / Encoder dial setting
Rotation modeForward/Reverse/Auto reverse
Spring-loaded jackManual balance (Max. height 200 mm, stepless regulation, one-touch lock)
Rotary motorDC brushless (simple servo)
Condenser retentionRetaining bracket for vertical condenser (condenser type B)
Safety functionsDC motor: Motor overload protection, overvoltage, low voltage, rotation speed sensor error
AC adapter: Short circuit in internal circuit, overcurrent protection, overvoltage protection
Cooling condenserDouble corrugated tube (cooling surface: 0.143 m2)
Suction Port: GL-14 (upper), Φ10 nozzle
Cooling port: GL14 (two places in lower part), two φ10 nozzles
Compatible receiving flask100-2000 ml
External dimensions (W x D x H)529 x 324 x 745
Overall dimensions (including bath) (W x D x H)554 x 365 x 745
Power rating100-115 VAC single phase 1A
Power cableApprox. 2.0 m with inlet plug
WeightApprox. 9.0 kg (including RE unit)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
