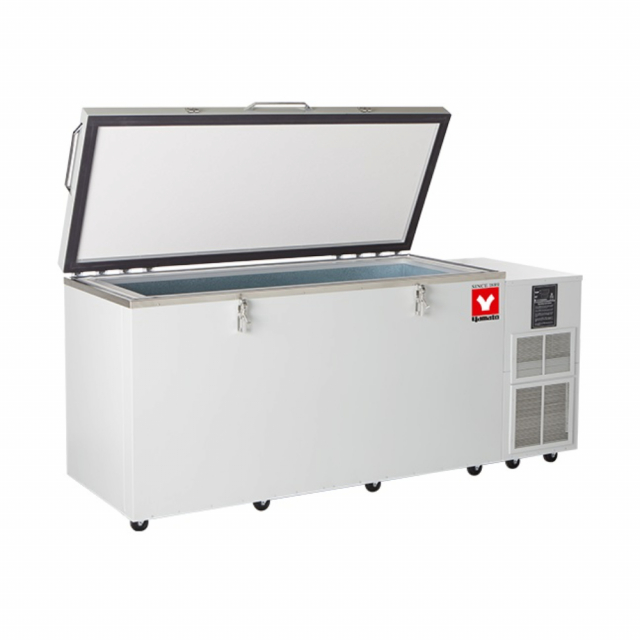

Yamato, LTF-801C, LTF Series Low-Temp Horizontal (Chest) Freezer

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Temperature Range	0°C ~ -40°C / +32 ~ -40°F
Temperature Control System	Digital Control with two temperature displays. One display shows the set temperature, the other shows the actual temperature in the freezer.
Digital Alarm System With Relay	Battery operated alarm system will emit an audible and visual signal when there is a mechanical or electrical failure. The alarm has an over and under temperature setting, alarm silencing switch, and battery test switch. Also provided is a relay for remote alarm hook-up.
Refrigeration System	Single stage system with one hermetic compressor. CFC and HCFC free refrigerants
Construction	Chamber is 14-ga. zinc coated galvanized steel. Exterior is 16-ga. steel. Powder coated cool gray finish.
Electrical Requirements	115V, 60 Hz, 1 phase 208V, 60 Hz, 1 phase 230V, 60 Hz, 1 phase 220V, 50 Hz, 1 phase 220V, 60 Hz, 1 phase
Capacity	626L / 22 cu. ft.
Rack Capacity	36
Internal Dimensions	67" x 19" x 30" / 170 x 48 x 76 cm
External Dimensions	98" x 36" x 43.5" / 248 x 91 x 110 cm

Temperature Range	0°C ~ -40°C / +32 ~ -40°F
Temperature Control System	Digital Control with two temperature displays. One display shows the set temperature, the other shows the actual temperature in the freezer.
Digital Alarm System With Relay	Battery operated alarm system will emit an audible and visual signal when there is a mechanical or electrical failure. The alarm has an over and under temperature setting, alarm silencing switch, and battery test switch. Also provided is a relay for remote alarm hook-up.
Refrigeration System	Single stage system with one hermetic compressor. CFC and HCFC free refrigerants
Construction	Chamber is 14-ga. zinc coated galvanized steel. Exterior is 16-ga. steel. Powder coated cool gray finish.
Electrical Requirements	115V, 60 Hz, 1 phase 208V, 60 Hz, 1 phase 230V, 60 Hz, 1 phase 220V, 50 Hz, 1 phase 220V, 60 Hz, 1 phase
Capacity	626L / 22 cu. ft.
Rack Capacity	36
Internal Dimensions	67" x 19" x 30" / 170 x 48 x 76 cm
External Dimensions	98" x 36" x 43.5" / 248 x 91 x 110 cm

Note: Please read description carefully. Do not base your order on the picture presented.
