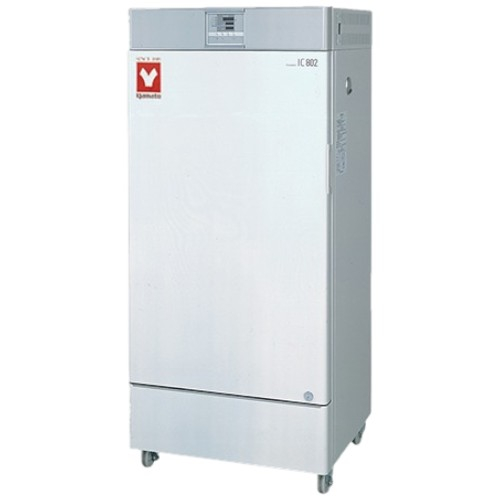

Buy Yamato IC-913CR, Incubator with Communication Port, 567L, 220V

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Version:: Version: Incubator with Communication Port
Power Supply (V):: Power Supply (V): 220

IC-913CR Includes Only:

Laboratory Incubator
Stainless steel shelf - 8 pcs.
Stainless steel brackets - 16 pcs.

Features:

Space saving
Easy-to-use digital setting display and timer
Air jacket technology ensures even and efficient heat distribution throughout the lab incubator chamber
Standard equipped with various functions such as self-diagnostic, calibration offset, overheat prevention and key lock

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

System

Natural convection

Operating temp. range

Room temp. +5~80°C

Temp. control accuracy

±0.5°C (at 37°C)

Temp. distribution accuracy

±1.0°C

Interior

Stainless steel

Exterior

Cold-rolled steel plate with melamine resin baking finish

Heat insulator

Glass fiber

Heater

Iron-chrome wire heater

2.2kW

Temperature controller

PID control by microprocessor

Temperature setting system

Operation menu key and digital setting by arrow keys, digital display

Temperature display

Measurement temperature: Digital display by 4-digit green LED
Setting temperature: Digital display by 4-digit red LED

Timer

1 min. ~ 99 hrs 59 mins. and 100~999 hrs 50 mins (including timer waiting function)

Operation function

Fixed temperature, Auto start, Auto stop, Quick Auto stop

Additional function

Calibration offset, Key-lock, Power outage compensation

Safety device

Self-diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention

Heater control circuit

SSR drive system

Sensor

K-thermocouple

Internal dimensions WxDxH

1070 x 530 x 1000 mm

External dimensions WxDxH

1180 x 656 x 1619 mm

Internal capacity

567L

Inner door

Reinforced glass door x 2

Shelf load capacity

~15 kg/pc.

Shelf rest step number

29 steps x 2

Power supply (50/60 Hz)

AC220V 6.5A (no plug, round terminal)

Weight

~166kg

Product Details

System

Natural convection

Operating temp. range

Room temp. +5~80°C

Temp. control accuracy

±0.5°C (at 37°C)

Temp. distribution accuracy

±1.0°C

Interior

Stainless steel

Exterior

Cold-rolled steel plate with melamine resin baking finish

Heat insulator

Glass fiber

Heater

Iron-chrome wire heater

2.2kW

Temperature controller

PID control by microprocessor

Temperature setting system

Operation menu key and digital setting by arrow keys, digital display

Temperature display

Measurement temperature: Digital display by 4-digit green LED
Setting temperature: Digital display by 4-digit red LED

Timer

1 min. ~ 99 hrs 59 mins. and 100~999 hrs 50 mins (including timer waiting function)

Operation function

Fixed temperature, Auto start, Auto stop, Quick Auto stop

Additional function

Calibration offset, Key-lock, Power outage compensation

Safety device

Self-diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention

Heater control circuit

SSR drive system

Sensor

K-thermocouple

Internal dimensions WxDxH

1070 x 530 x 1000 mm

External dimensions WxDxH

1180 x 656 x 1619 mm

Internal capacity

567L

Inner door

Reinforced glass door x 2

Shelf load capacity

~15 kg/pc.

Shelf rest step number

29 steps x 2

Power supply (50/60 Hz)

AC220V 6.5A (no plug, round terminal)

Weight

~166kg

Note

Note: Please read description carefully. Do not base your order on the picture presented.
