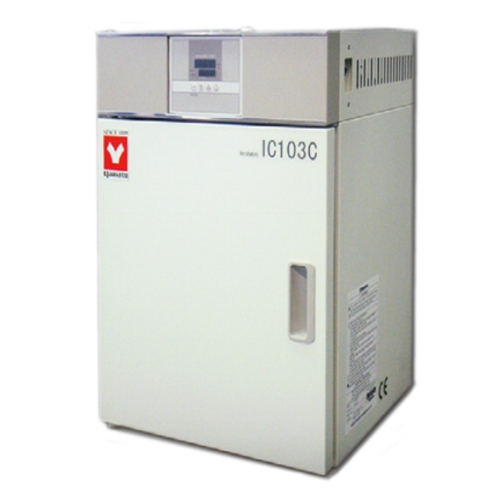

IC-103C,Yamato IC Series Natural Convection Incubator

Economical general purpose natural convection incubators

Space saving
All models come with either an observation window (W) for improved visibility or solid door
Dual door system permits contents to be viewed easily without disrupting atmosphere of the incubator
Control panel of IC103C located at a higher position for easy access
Easy to use digital setting display and timer
Air jacket technology ensures even and efficient heat distribution throughout the chamber
Standard equipped with various functions such as self-diagnostic, calibration off-set, overheat prevention and key lock

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

System	Natural convection
Operating temperature range	Room temp. +5~80°C
Temp. control accuracy	±0.5°C (at 37°C)
Temperature distribution accuracy	±1.0°C
Interior materia	Stainless steel
Exterior material	Cold rolled steel plate with melamine resin baking finish
Heat insulator	Glass fiber
Heater	Stainless steel heating pipe
Heater	0.2kW
Temperature controller	PID control by microprocessor
Temperature setting system	Operation menu key and digital setting by keys, digital display
Temperature display	Measurement temperature: Digital display by 4 digit green LED Setting temperature: Digital display by 4 digit red LED
Timer	1 min. - 99 hrs 59 mins. and 100-999 hrs 50 mins (including timer waiting function)
Operation function	Fixed temperature, Auto start, Auto stop, Quick Auto stop
Additional function	Calibration off-set, Key-lock, Power outage compensation
Safety device	Self diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention
Heater control circuit	SSR drive system
Sensor	K-thermocouple
Internal dimensions (WxDxHmm)	350 x 300 x 360
External dimensions (WxDxHmm)	430 x 397 x 606
Internal capacity	37L
Inner door	None
Shelf load capacity	~15 kg/pc
Shelf rest step number	8 steps
Power supply (50/60 Hz)	AC115V 1.8A with plug
Weight	~17 kg
Shelf / shelf brackets	Stainless steel
Shelf / shelf brackets	2 pcs. / 4pcs.

System	Natural convection
Operating temperature range	Room temp. +5~80°C
Temp. control accuracy	±0.5°C (at 37°C)
Temperature distribution accuracy	±1.0°C
Interior materia	Stainless steel
Exterior material	Cold rolled steel plate with melamine resin baking finish
Heat insulator	Glass fiber
Heater	Stainless steel heating pipe
Heater	0.2kW
Temperature controller	PID control by microprocessor
Temperature setting system	Operation menu key and digital setting by keys, digital display
Temperature display	Measurement temperature: Digital display by 4 digit green LED Setting temperature: Digital display by 4 digit red LED
Timer	1 min. - 99 hrs 59 mins. and 100-999 hrs 50 mins (including timer waiting function)
Operation function	Fixed temperature, Auto start, Auto stop, Quick Auto stop
Additional function	Calibration off-set, Key-lock, Power outage compensation
Safety device	Self diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention
Heater control circuit	SSR drive system
Sensor	K-thermocouple
Internal dimensions (WxDxHmm)	350 x 300 x 360
External dimensions (WxDxHmm)	430 x 397 x 606
Internal capacity	37L
Inner door	None
Shelf load capacity	~15 kg/pc
Shelf rest step number	8 steps
Power supply (50/60 Hz)	AC115V 1.8A with plug
Weight	~17 kg
Shelf / shelf brackets	Stainless steel
Shelf / shelf brackets	2 pcs. / 4pcs.

Note: Please read description carefully. Do not base your order on the picture presented.
