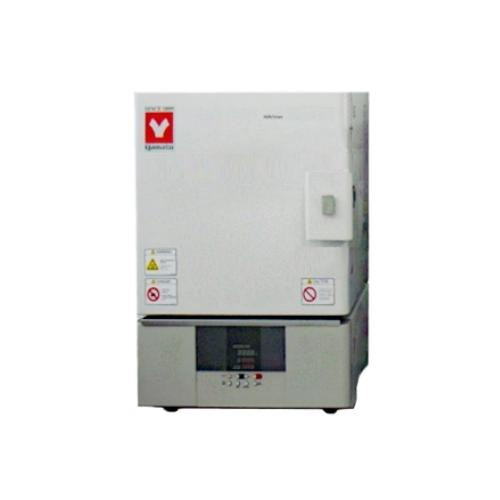

Buy Yamato FO-710CR, Muffle Furnace 23.6L

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features with all optional accessories:

Wide selection of space-saving compact units with maximum inner capacity
Easy to use controller
Excellent heat tightness with a firmly sealed chamber door
Safety features include self-diagnostic functions, calibration off-set, lock function, auto-recovery after power failure, earth leakage breaker and automatic overheat prevention device
Selectable options include exhaust system unit, N2 gas loading device (with flow meter), temperature output terminal, time up / alarm output terminal and sample tray
Upgraded with long life R-thermocouple sensors
Designed with communication port

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Operating temperature range	100 ~ 1150 °C
Temp. control accuracy	±2°C (at 1150°C)
Max. temp. reaching time	Approx. 80min
Exterior material	Cold rolled steel plate with baked-on melamine resin finish
Furnace material	Ceramic fiber
Sensor	R-thermocouple
Heater	Iron-chrome wire heater 3.5 kW
Exhaust port	20 mm I.D. (upper part)
Cooling Fan Type	Axial fan motor
Temp. controller	PID control by microprocessor
Temp. setting method	Digital setting with UP/DOWN key
Temp display method	Digital display
Over heating prevention	PID control by microprocessor
Operation function	Fixed temperature, quick auto stop, auto stop, auto start, program (maximum 6 patterns: 30 steps x 1 pattern, 15 steps x 2 patterns or 10steps x 3 patterns)
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs.
Additional functions	Calibration off-set, Power outage compensation
Safety Device	Self diagnosis circuit (Abnormal temp. sensor, Auto overheat protection), Overheat protector, Overcurrent ELB
Power source 50/60Hz (single phase)	SAC200V Single phase, 18.5A
Internal dimensions (WxDxHmm)	270x350x250
External dimensions (WxDxHmm)	507x605x727
Internal capacity	23.6L
Weight	58kg
model do not come with a plug (round terminal)

Operating temperature range	100 ~ 1150 °C
Temp. control accuracy	±2°C (at 1150°C)
Max. temp. reaching time	Approx. 80min
Exterior material	Cold rolled steel plate with baked-on melamine resin finish
Furnace material	Ceramic fiber
Sensor	R-thermocouple
Heater	Iron-chrome wire heater 3.5 kW
Exhaust port	20 mm I.D. (upper part)
Cooling Fan Type	Axial fan motor
Temp. controller	PID control by microprocessor
Temp. setting method	Digital setting with UP/DOWN key
Temp display method	Digital display
Over heating prevention	PID control by microprocessor
Operation function	Fixed temperature, quick auto stop, auto stop, auto start, program (maximum 6 patterns: 30 steps x 1 pattern, 15 steps x 2 patterns or 10steps x 3 patterns)
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs.
Additional functions	Calibration off-set, Power outage compensation
Safety Device	Self diagnosis circuit (Abnormal temp. sensor, Auto overheat protection), Overheat protector, Overcurrent ELB
Power source 50/60Hz (single phase)	SAC200V Single phase, 18.5A
Internal dimensions (WxDxHmm)	270x350x250
External dimensions (WxDxHmm)	507x605x727
Internal capacity	23.6L
Weight	58kg
model do not come with a plug (round terminal)

Note: Please read description carefully. Do not base your order on the picture presented.
