Options and Related Products

Internal Capacity:: Internal Capacity: 150L

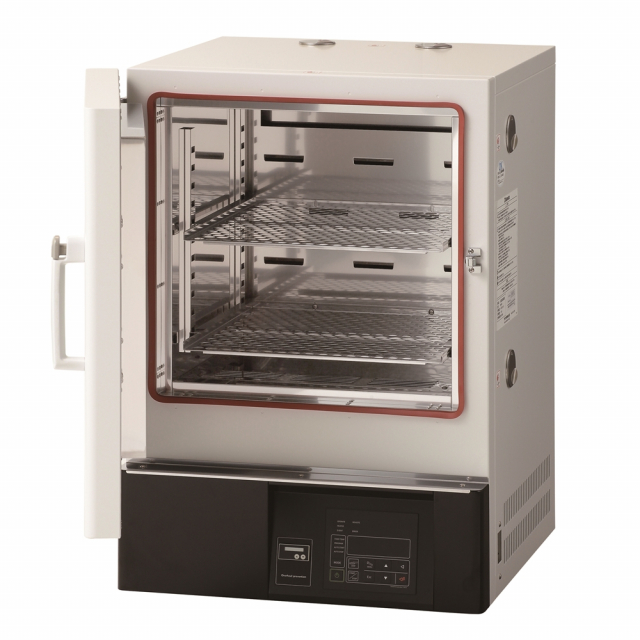

Constant Temperature Oven, 150L

Due to high precision control system, high performance temperature control is realized, and the CO2 discharge, power discharge also displayed at the monitor. The DNE series represents forced convection constant temperature oven. They achieve an energy-saving rate of 30 to 40% compared to previous models.

Features:

Incorporates with maximum 99 steps, 99 patterns program controller with repeat function.
Loaded with Total Operation Hours Timer
Data acquisition from internal test device is easy because of cable holes

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Item Code	212825
Model	DNE611
Temp. adjustment accuracy	±0.5°C (at 210°C)
Temp. distribution accuracy	±2.0°C (at 210°C)
Max. temp. reaching time	Approx. 70 min.
Interior / Exterior material	Stainless steel / Electro-galvanized steel sheet with epoxy and melamine resin baking finish
Operation function	Fixed temperature operation, Program operation, Auto start, Auto-stop, Quick automatic stop
Program mode	Program operation; Maximum 32 steps, Repeat function
Additional functions	Timer Function (Actual Timer within 24 hrs.), Total operation hours timer (to 65535 hrs.), Calendar time ( 24 hours),
Shelf plate with standard load	Approx. 15 kg / piece
Heat insulating material	Glass wool
Heater	Stainless pipe heater
Heater	1.2kW
Fan Type	Scirocco fan
Motor	Condenser type, 10W
Cable hole/Air in-take hole	33 mm. I.D. (the right side) 1 pc.
Temp. controller	PlD Z control by microprocessor
Temp. setting method	Digital setting by UP / DOWN key
Temp display method	Digital Display by Green LED
Timer / Min.division	0 min. to 99 Hrs. 59 min. / 1 min.
Additional functions	Calibration offset, Power discharge, CO2 discharge, Power failure return mode, User configuration information
Heater circuit control	Triac zero-cross control
Safety countermeasures	Self diagnosis functions (Temp. sensor abnormal, Heater disconnection, SSR-short, Main relay abnormal, Automatic overheating prevention),
Safety countermeasures	Key lock function, Independent overheat prevention, Electric leakage breaker with over current protection
Shelf support step number	13 steps
Shelf support pitch	30 mm.
Method	Forced air circulation
Operating temperature range	Room temp. +20 to 210°C
Internal dimensions (W. x D. x H.)	600 mm. x 500 mm. x 500 mm.
External dimensions (W. x D. x H.)	730 mm. x 695 mm. x 910 mm.
Remarks (dimensions)	150 L
Power Source	AC220V 7A; Single-phase
Weight	77 kg

Product Details

Item Code	212825
Model	DNE611
Temp. adjustment accuracy	±0.5°C (at 210°C)
Temp. distribution accuracy	±2.0°C (at 210°C)
Max. temp. reaching time	Approx. 70 min.
Interior / Exterior material	Stainless steel / Electro-galvanized steel sheet with epoxy and melamine resin baking finish
Operation function	Fixed temperature operation, Program operation, Auto start, Auto-stop, Quick automatic stop
Program mode	Program operation; Maximum 32 steps, Repeat function
Additional functions	Timer Function (Actual Timer within 24 hrs.), Total operation hours timer (to 65535 hrs.), Calendar time ( 24 hours),
Shelf plate with standard load	Approx. 15 kg / piece
Heat insulating material	Glass wool
Heater	Stainless pipe heater
Heater	1.2kW
Fan Type	Scirocco fan
Motor	Condenser type, 10W
Cable hole/Air in-take hole	33 mm. I.D. (the right side) 1 pc.
Temp. controller	PlD Z control by microprocessor
Temp. setting method	Digital setting by UP / DOWN key
Temp display method	Digital Display by Green LED
Timer / Min.division	0 min. to 99 Hrs. 59 min. / 1 min.
Additional functions	Calibration offset, Power discharge, CO2 discharge, Power failure return mode, User configuration information
Heater circuit control	Triac zero-cross control
Safety countermeasures	Self diagnosis functions (Temp. sensor abnormal, Heater disconnection, SSR-short, Main relay abnormal, Automatic overheating prevention),
Safety countermeasures	Key lock function, Independent overheat prevention, Electric leakage breaker with over current protection
Shelf support step number	13 steps
Shelf support pitch	30 mm.
Method	Forced air circulation
Operating temperature range	Room temp. +20 to 210°C
Internal dimensions (W. x D. x H.)	600 mm. x 500 mm. x 500 mm.
External dimensions (W. x D. x H.)	730 mm. x 695 mm. x 910 mm.
Remarks (dimensions)	150 L
Power Source	AC220V 7A; Single-phase
Weight	77 kg

Note

Note: Please read description carefully. Do not base your order on the picture presented.
