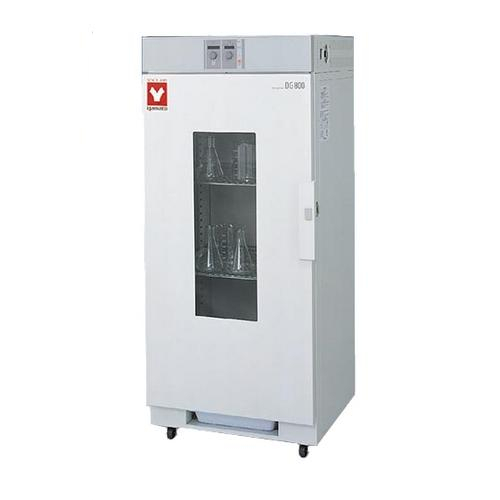

Buy Yamato DG-800C, Natural Convection Oven

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Natural convection oven for glassware drying.

Features:

Large window for easy observation
Can be used to store instruments after drying
Highly efficient heat insulation material for both internal and external structure
Adjustable foot for stability on uneven floors
Equipped with stainless steel pipe heater and water receiving plate at the bottom
Stainless steel interior, easy to clean and highly resistant to corrosion
Dial setting and digital display of temperature control and timer
Self-diagnostic functions, calibration offset, independent overheat prevention, over current leakage breaker, key lock and auto recovery after power failure
Accurate temperature control may not be possible with heat generating samples in the chamber

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

System	Natural convection
Operating Temp. Range	RT+5~70°C
Interior Material	Stainless steel
Heater	SUS pipe heater 1.34 kW
Temp. Controller	PID control with microprocessor
Operation Functions	Fixed temperature, auto stop, auto start, quick auto stop
Sensor	Temp. controller: K thermocouple, Overheat protection: Liquid-expansion temp. controller
Exhaust Port	I.D. 34mm x 2
Suction Port	I.D. 30mm x 2
Germicidal Lamp	15Wx1
Internal Dimensions WxDxH	620 x 600 x 1195 mm
External Dimensions WxDxH	674 x 711 x 1586 mm
Internal Capacity	445L
Weight	~78kg
Door	Single door, silicon rubber packing
Observation Window	Standard glass 3mm W250 x H700 mm
Shelf Plate Load	15 kg/pc.
Shelf Rest / Pitch	29 steps / 30 mm
Power Source	AC115 V (with plug) AC220 V (no plug, round terminal)
Shelf Plate / Bracket	4 pcs. / 8 pcs.
Water Receiving Plate	1 pc.

System	Natural convection
Operating Temp. Range	RT+5~70°C
Interior Material	Stainless steel
Heater	SUS pipe heater 1.34 kW
Temp. Controller	PID control with microprocessor
Operation Functions	Fixed temperature, auto stop, auto start, quick auto stop
Sensor	Temp. controller: K thermocouple, Overheat protection: Liquid-expansion temp. controller
Exhaust Port	I.D. 34mm x 2
Suction Port	I.D. 30mm x 2
Germicidal Lamp	15Wx1
Internal Dimensions WxDxH	620 x 600 x 1195 mm
External Dimensions WxDxH	674 x 711 x 1586 mm
Internal Capacity	445L
Weight	~78kg
Door	Single door, silicon rubber packing
Observation Window	Standard glass 3mm W250 x H700 mm
Shelf Plate Load	15 kg/pc.
Shelf Rest / Pitch	29 steps / 30 mm
Power Source	AC115 V (with plug) AC220 V (no plug, round terminal)
Shelf Plate / Bracket	4 pcs. / 8 pcs.
Water Receiving Plate	1 pc.

Note: Please read description carefully. Do not base your order on the picture presented.
