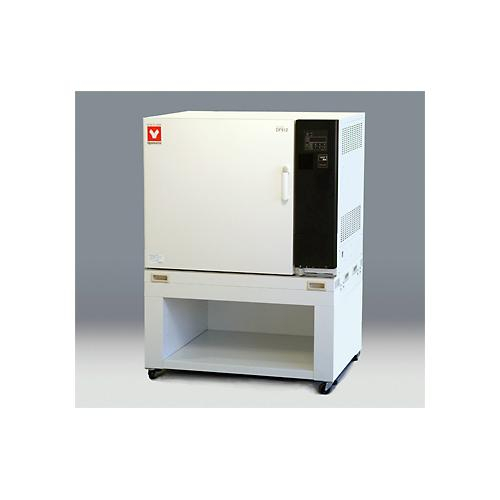

Yamato DF-612 Fine Oven, 216L, 220V, 50/60Hz, 3.0kW

  • Brand Yamato
  • Part # DF-612
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Fine Oven, 216L, 220V, 50/60Hz, 3.0kW

Highly reliable accuracy oven with simple settings for various temperature characteristics test that require complicated programming.

Features:

  • Simple Operation by Interactive Key Input.
  • Operation Monitor visualizes Controller Status, Temp and Temp. Changing.
  • Incorporates with maximum 99 steps, 99 patterns program controller with repeat function.
  • Loaded with Total Operation Hours Timer.
  • Exhaust damper allows quick exhaust and cooling of inside.
  • Accumulated timer function useful for maintenance and management is equipped as standard.
  • Cable port useful for a monitor for temperature during testing is equipped as standard.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Operating temp. rangeRoom temp. + 15 to 260deg.C
Temp. control accuracy (JTM K05)±0.1deg.C（at 260deg.C）
Temp. fluctuation (JIS)±0.5deg.C（at 260deg.C）
Temp. distribution accuracy (JTM K05)±1.5deg.C（at 260deg.C）
Temp. gradient (JIS)±10deg.C（at 260deg.C）
Time to attain max. temp.Approx. 50 min. (to 260deg.C)
Temp. control systemPID control with a micro computer
Temp. and time setting systemDigital Setting by UP/DOWN Key
Timer display rangeFixed value operation for 1 min. to 99 hr 59 min. and 24hr. setting
Operation and manipulation functionsFixed temp., Auto-start, Auto-stop, Quick auto stop, program (Max.99 steps, 99 patterns, repeat)
Additional functionsCalendar timer (max. 24 Hrs.), Integration time (max. 65535Hrs.), Clock, Calibration off-set, Display the amount of Power consumption/CO2 discharge/Heater operation amount, Power failure recovery mode, User setting information save and recall, Wind velocity changeable function
SensorDouble K-thermocouple
HeaterStainless pipe heater with a fan
Nominal heater capacity3.0kW
Blower fan (motor)Axial flow fan (capacitor motor: 20W)
Cable portI.D. 33 mm (rear)
Heat insulatorGlass wool
Other additional mechanismExhaust damper (manual)
Safety deviceSelf diagnosis functions(Sensor, Fan, Heater, Relay, Triac, Automatic overheat prevention), Independent overheat prevention, Key lock function, Electric leakage breaker, Door switch
Internal volume216L
Withstand load of shelf board30 kg/unit
No.of shelf stages/peg pitch9 stages/60 mm
PS (50/60) Hz rated currentSingle phase AC200V 11A (15A)
Product Details
Operating temp. rangeRoom temp. + 15 to 260deg.C
Temp. control accuracy (JTM K05)±0.1deg.C（at 260deg.C）
Temp. fluctuation (JIS)±0.5deg.C（at 260deg.C）
Temp. distribution accuracy (JTM K05)±1.5deg.C（at 260deg.C）
Temp. gradient (JIS)±10deg.C（at 260deg.C）
Time to attain max. temp.Approx. 50 min. (to 260deg.C)
Temp. control systemPID control with a micro computer
Temp. and time setting systemDigital Setting by UP/DOWN Key
Timer display rangeFixed value operation for 1 min. to 99 hr 59 min. and 24hr. setting
Operation and manipulation functionsFixed temp., Auto-start, Auto-stop, Quick auto stop, program (Max.99 steps, 99 patterns, repeat)
Additional functionsCalendar timer (max. 24 Hrs.), Integration time (max. 65535Hrs.), Clock, Calibration off-set, Display the amount of Power consumption/CO2 discharge/Heater operation amount, Power failure recovery mode, User setting information save and recall, Wind velocity changeable function
SensorDouble K-thermocouple
HeaterStainless pipe heater with a fan
Nominal heater capacity3.0kW
Blower fan (motor)Axial flow fan (capacitor motor: 20W)
Cable portI.D. 33 mm (rear)
Heat insulatorGlass wool
Other additional mechanismExhaust damper (manual)
Safety deviceSelf diagnosis functions(Sensor, Fan, Heater, Relay, Triac, Automatic overheat prevention), Independent overheat prevention, Key lock function, Electric leakage breaker, Door switch
Internal volume216L
Withstand load of shelf board30 kg/unit
No.of shelf stages/peg pitch9 stages/60 mm
PS (50/60) Hz rated currentSingle phase AC200V 11A (15A)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
