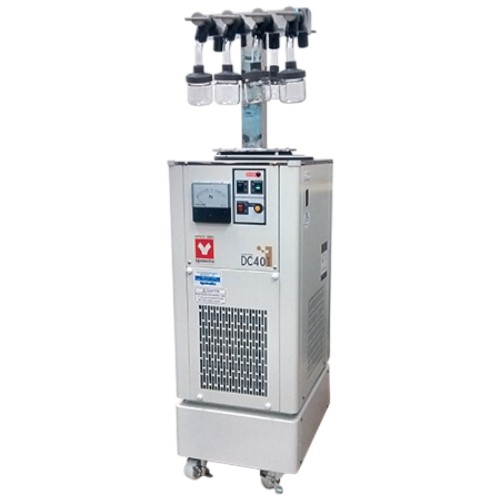

Buy Yamato DC-401-115V, Freeze Dryer with Cold Trap 115V

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

DC-401-115V Includes Only:

Features:

Contaminant-free system
Designed with an automatic safety vacuum venting system, preventing oil backflow when turned off or when a power failure occurs
Ice can be refrozen and removed smoothly from the vessel by the Hot Gas Bypass System

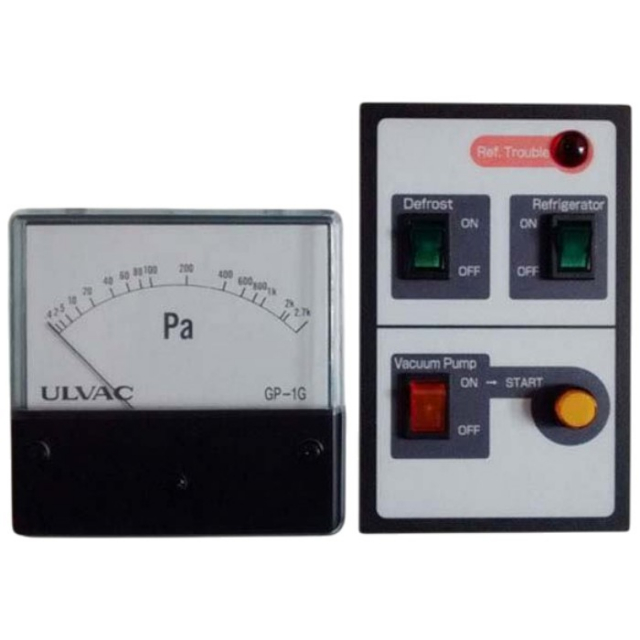

Equipped with Pirani Vacuum Gauge
Safety Valve is linked with the service receptacle for the vacuum pump
Environment friendly coolant used for refrigeration
Highly mobile on wheels

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Trap cooling temperature	-45°C
Time to reach the minimum temperature	50 min. (20°C to -45°C)
Dehumidify amount	0.6L
Refrigerator	Air Cooling Type, 400W
Refrigerator, coolant	R404A, Coolant amount: 300g ±5g
Bath Shape, material	Cylinder, Stainless steel
Drain	Vacuum hose with stopper
Vacuum gauge	Pirani Vacuum Measure
Trap defrost	Defrosted by Hot Gas
Exhaust port (vacuum pump connection)	ø17mm
Ambient temperature range	5~30°C
Safety device	Electric leakage breaker with overcurrent protection, refrigerator overload relay, valve for backflow prevention
Trap dimensions	ø153 x H235mm
External dimensions WxDxH	300 x 450 x 920 mm
Internal capacity	~4L
Power source 50/60 Hz	AC115V 12A
Weight	~60kg
Included accessories	Vacuum silicone grease; vacuum hose (12 x 30 x 1.5m)

Trap cooling temperature	-45°C
Time to reach the minimum temperature	50 min. (20°C to -45°C)
Dehumidify amount	0.6L
Refrigerator	Air Cooling Type, 400W
Refrigerator, coolant	R404A, Coolant amount: 300g ±5g
Bath Shape, material	Cylinder, Stainless steel
Drain	Vacuum hose with stopper
Vacuum gauge	Pirani Vacuum Measure
Trap defrost	Defrosted by Hot Gas
Exhaust port (vacuum pump connection)	ø17mm
Ambient temperature range	5~30°C
Safety device	Electric leakage breaker with overcurrent protection, refrigerator overload relay, valve for backflow prevention
Trap dimensions	ø153 x H235mm
External dimensions WxDxH	300 x 450 x 920 mm
Internal capacity	~4L
Power source 50/60 Hz	AC115V 12A
Weight	~60kg
Included accessories	Vacuum silicone grease; vacuum hose (12 x 30 x 1.5m)

Note: Please read description carefully. Do not base your order on the picture presented.
