Buy Yamato CF-802-115V, CF802 Refrigerated Water Circulators 115V

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

CF-802-115V Includes Only:

1 x Condensation drain hose(1m)
2 x Hose clamp
2 x Hose nozzle (for flexible hose connection)
1 x Spare fuse for service outlet 2A for CF802

Features:

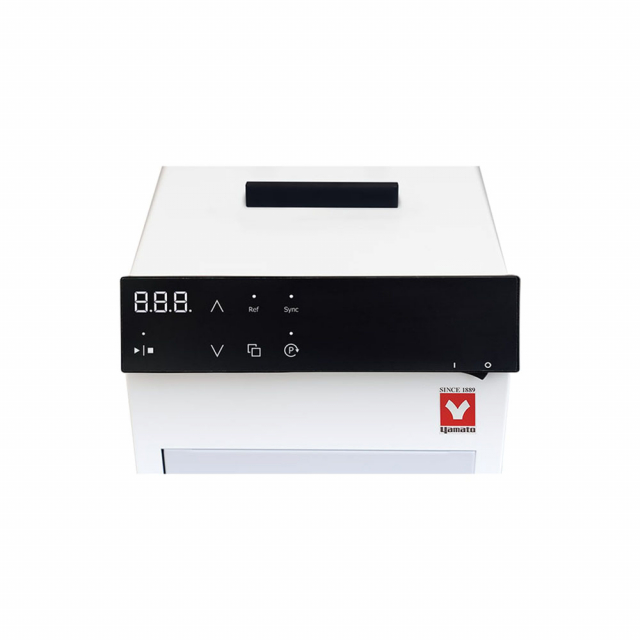

User-friendly controller. Controller with high visibility and improved operability. Possible to switch between measured temperature and set temperature.

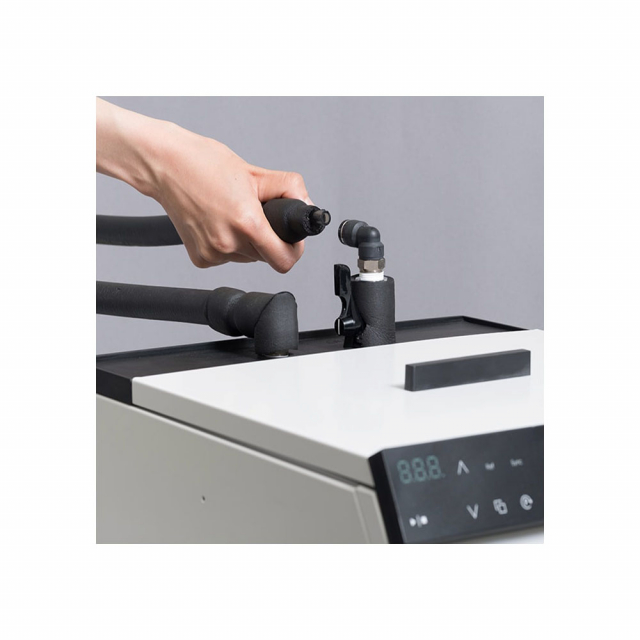

User-friendly controller. Connection is completed by inserting a hard tube with 10 mm OD or flexible hose with 9mm ID. Connector can be freely moved and be set in the desired direction

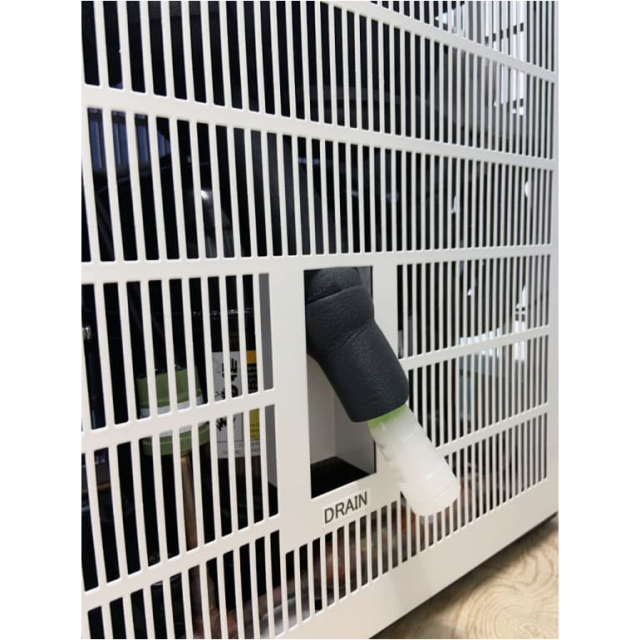

Easy drainage of condensate water. A condensation drain port is designed near the connector on the upper rear of the unit
Easy to clean intake filter. Filter mounting plate located on the front of the unit can be easily removed when cleaning
Space-saving solvent recovery device stored in the main body as secondary trap (option for CF802). Used to recover solvent gases remaining in the concentration recovery process

Powerful and water saving closed cooling system with excellent cooling capacity.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Circulation Type	Closed circulation / tap water, anti-freeze solution (over 10°C)
Operating Ambient Temp. Range	5 to 35°C
Temp. Setting Range	-20°C - 30°C (no heating function)
*Temp. Control Accuracy 2**	±1.0°C
*Temp. Fluctuation 2**	3.0°C
*Cooling Capacity (Liquid Temp) 2**	-1320W at 10°C -700W at -10°C
*Max. Flow Rate 3**	-14L/min.
*Max. Head 3**	-14.3m
Temperature Control	Refrigerator on/off control
Temperature Sensor	Pt100Ω
Controller	White LED digital display, key entry, minimum digit of 1°C
Refrigeration System / Rated Performance	Air cooling, 700W
Refrigerant	R410A
Cooling Coil	304 stainless steel
External Circulation Connection Port	Rear top panel, single line One touch connector (swivel type, L type) Flow rate valve
Safety Device	Overcurrent ELCB, temp. sensor failure, temp. upper/lower limit alert, temp. upper/lower limit error, refrigerator high pressure cut off switch fan motor protection, circulation pump protection, delay timer for refrigerator protection, overcurrent protection fuse (service outlet) for CF802, refrigerator overload relay (CF802)
Other Functions	Drain hose, condensate drain hose, Intake dust filter, cooling operation key, circulating pump key, calibration offset, auto resume function, service outlet (2A) for CF802
Water Bath Material	Stainless Steel
Water Bath Capacity	-15.5L (Liquid volume 14L)
Power Source (50/60Hz)	AC115V 15A with plug
External Dimension WxDxH (Including Protrusions)	340 x 370 x 838 mm (340 x 408 x 920 mm)
Weight	-44kg

Product Details

Circulation Type	Closed circulation / tap water, anti-freeze solution (over 10°C)
Operating Ambient Temp. Range	5 to 35°C
Temp. Setting Range	-20°C - 30°C (no heating function)
*Temp. Control Accuracy 2**	±1.0°C
*Temp. Fluctuation 2**	3.0°C
*Cooling Capacity (Liquid Temp) 2**	-1320W at 10°C -700W at -10°C
*Max. Flow Rate 3**	-14L/min.
*Max. Head 3**	-14.3m
Temperature Control	Refrigerator on/off control
Temperature Sensor	Pt100Ω
Controller	White LED digital display, key entry, minimum digit of 1°C
Refrigeration System / Rated Performance	Air cooling, 700W
Refrigerant	R410A
Cooling Coil	304 stainless steel
External Circulation Connection Port	Rear top panel, single line One touch connector (swivel type, L type) Flow rate valve
Safety Device	Overcurrent ELCB, temp. sensor failure, temp. upper/lower limit alert, temp. upper/lower limit error, refrigerator high pressure cut off switch fan motor protection, circulation pump protection, delay timer for refrigerator protection, overcurrent protection fuse (service outlet) for CF802, refrigerator overload relay (CF802)
Other Functions	Drain hose, condensate drain hose, Intake dust filter, cooling operation key, circulating pump key, calibration offset, auto resume function, service outlet (2A) for CF802
Water Bath Material	Stainless Steel
Water Bath Capacity	-15.5L (Liquid volume 14L)
Power Source (50/60Hz)	AC115V 15A with plug
External Dimension WxDxH (Including Protrusions)	340 x 370 x 838 mm (340 x 408 x 920 mm)
Weight	-44kg

Note

Note: Please read description carefully. Do not base your order on the picture presented.

Reviews

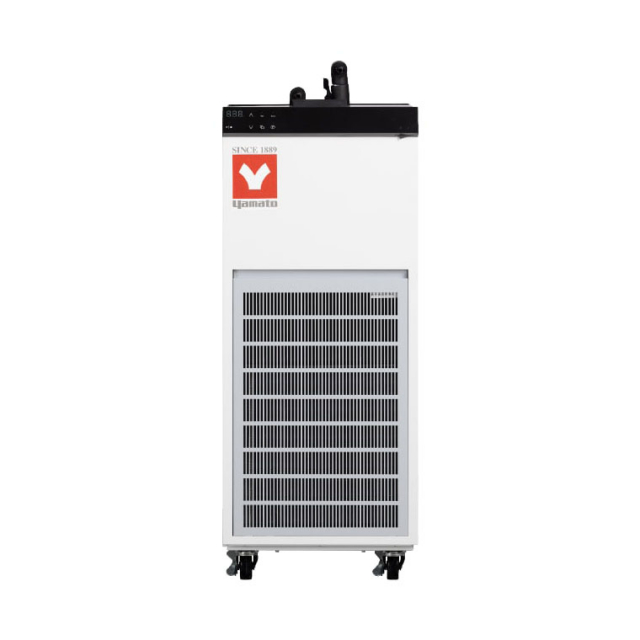

Yamato CF-802-115V CF802 Refrigerated Water Circulators 115V
