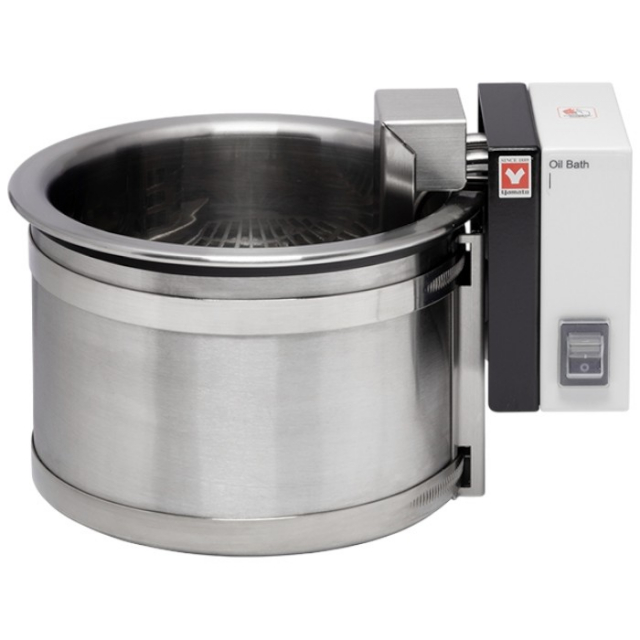

Buy Yamato BOS-100, Laboratory Stainless Steel 1L Oil Bath, 115V

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

BOS-100 Includes Only:

Features:

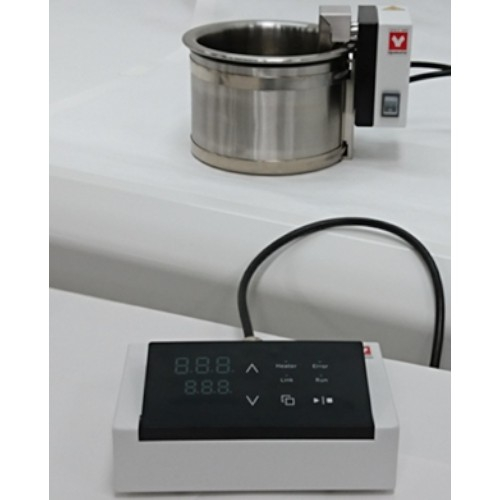

Safe and secure bath operation, as the controller can be safely operated from a distance
Solid stainless bath for good temperature stability (BOS)
Indent at the bottom of the bath allows integration of the stirrer's hot plate. Also prevents the bath from sliding or slipping off. Compatible with Yamato MFD800/MFH800 magnetic stirrers.
Useless oil use and oil overflow are reduced as the recommended amount of oil to use is indicated in the bath
Highly accurate and rapid temperature control in the flask is possible with the use of the temperature sensor (sold separately) inserted into the flask and the in-tank sensor together

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Temperature setting range	0~260°C
Temperature control range	Room temp. +5~250°C
Temperature control accuracy	± 0.3°C (at 200°C, when stirring)
Temperature control system	PID control
Temp. setting/display method	Digital setting using keys (display in units of 1°C)
Operation function	Fixed temperature operation
Additional functions	Calibration offset function, auto resume, and LED brightness setting
Heater circuit control	Triac zero-cross method
Temperature sensor	Pt100Ω
Exterior	Chromium-free electrogalvanized steel plate baked finish
Bath	Stainless steel
Heater material	Stainless steel tube heater
Heater capacity	310W
Controller	Self-diagnostic functions ( temperature sensor error detection, automatic overheat prevention)
Fuse	6.3 A, short-circuit protection, overcurrent protection
Others	Independent overheat prevention device
Internal dimension (mm)	140x100
External dimension (mm)	155x210x140
Bath capacity
Recommended (no load)	~0.8L
Maximum (no load)	~1.0L

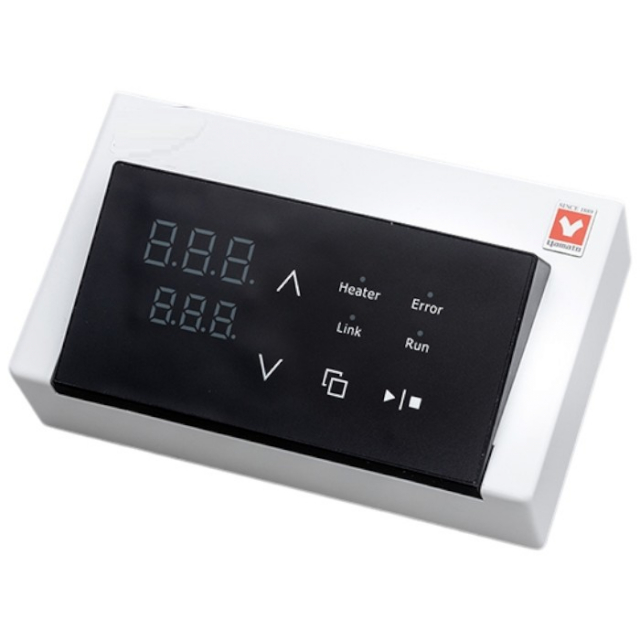

Controller (WxDxH) mm	150x90x45mm
Power supply 50/60 Hz	115V 3.5A
Weight
Bath and heater	~2.5 kg
Single controller
Total weight	~3.0 kg

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Temperature setting range	0~260°C
Temperature control range	Room temp. +5~250°C
Temperature control accuracy	± 0.3°C (at 200°C, when stirring)
Temperature control system	PID control
Temp. setting/display method	Digital setting using keys (display in units of 1°C)
Operation function	Fixed temperature operation
Additional functions	Calibration offset function, auto resume, and LED brightness setting
Heater circuit control	Triac zero-cross method
Temperature sensor	Pt100Ω
Exterior	Chromium-free electrogalvanized steel plate baked finish
Bath	Stainless steel
Heater material	Stainless steel tube heater
Heater capacity	310W
Controller	Self-diagnostic functions ( temperature sensor error detection, automatic overheat prevention)
Fuse	6.3 A, short-circuit protection, overcurrent protection
Others	Independent overheat prevention device
Internal dimension (mm)	140x100
External dimension (mm)	155x210x140
Bath capacity
Recommended (no load)	~0.8L
Maximum (no load)	~1.0L
Controller (WxDxH) mm	150x90x45mm
Power supply 50/60 Hz	115V 3.5A
Weight
Bath and heater	~2.5 kg
Single controller
Total weight	~3.0 kg

Note: Please read description carefully. Do not base your order on the picture presented.
